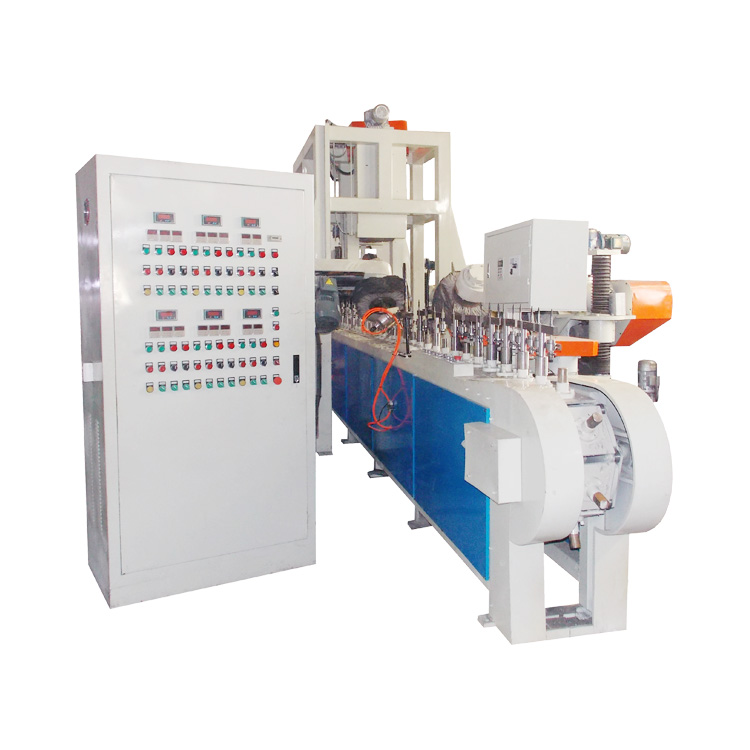

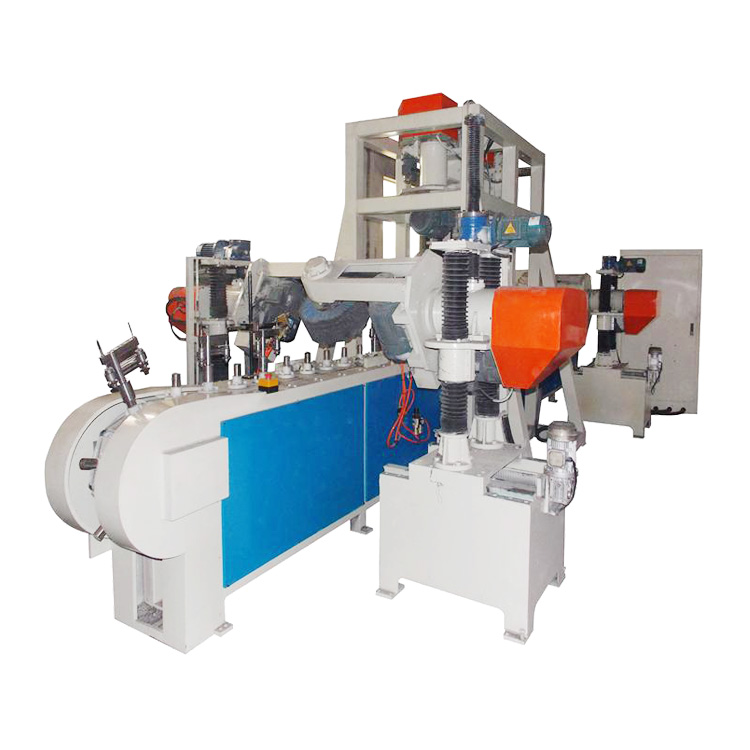

Chain-Type Multi-Head Automatic Polishing Machine is an automated polishing equipment that uses a chain transmission system and is equipped with multiple polishing heads. Whether it is metal, plastic, glass or ceramic, after polishing, it can show a more glamorous surface, enhance product value and user experience. With the rapid development of industrial automation, traditional manual polishing methods are gradually replaced by efficient and precise automated equipment. Chain-Type Multi-Head Automatic Polishing Machine, as an advanced automated polishing equipment, has become an indispensable polishing tool in modern manufacturing industry with its high efficiency, stability and flexibility.
Chain transmission part:
The core transmission component of the chain-type multi-head automatic polishing machine is the chain. Chains are usually made of high-strength metal materials with good wear resistance and toughness to ensure stable operation in long-term, high-intensity working environments. It is like a circulating track that drives the workpiece to move between the polishing heads. The speed of the chain can be precisely controlled through the motor and speed regulating device. For example, when processing small precision workpieces, the speed can be slowed down to make the polishing effect more refined.
Body frame:
The body is generally made of a solid metal structure, such as welded steel, to provide stable support for the entire device. Its design fully considers the stability of the equipment during operation to avoid affecting the polishing quality due to vibration. At the same time, the size and shape of the machine body will be reasonably arranged based on the number of polishing heads, the length of the chain and other factors to facilitate the loading, polishing and unloading operations of workpieces.
Polishing head assembly:
Multiple heads are the distinguishing feature of this equipment. The number of polishing heads can be configured according to specific production needs, usually ranging from 3 to 10 heads. Each polishing head is equipped with an independent motor for driving polishing tools (such as polishing wheels, polishing belts, etc.) to rotate. The position and angle of the polishing head can be flexibly adjusted, and some equipment can also be accurately set through a computer control system so that the polishing head can accurately contact various parts of the workpiece.
Efficient production: The chain transmission system can realize continuous production, and the multi-station design can polish multiple workpieces at the same time, significantly improving production efficiency and reducing labor costs.
Stable and reliable: It adopts advanced motors and control systems, and its operation is stable and reliable, and it can work continuously for a long time to ensure the consistency of product quality.
Strong flexibility: The chain transmission speed, polishing wheel speed, pressure and other parameters can be flexibly adjusted according to the shape and size of different workpieces to meet diverse polishing needs.
High degree of automation: The automated control system can achieve precise control of the polishing process, reduce human operation errors, and improve product yield.
Easy operation: The human-machine interface is friendly, the operation is simple and easy to understand, and it is convenient for workers to quickly get started.
Convenient maintenance: Modular design, convenient and fast maintenance, effectively reducing equipment maintenance costs.

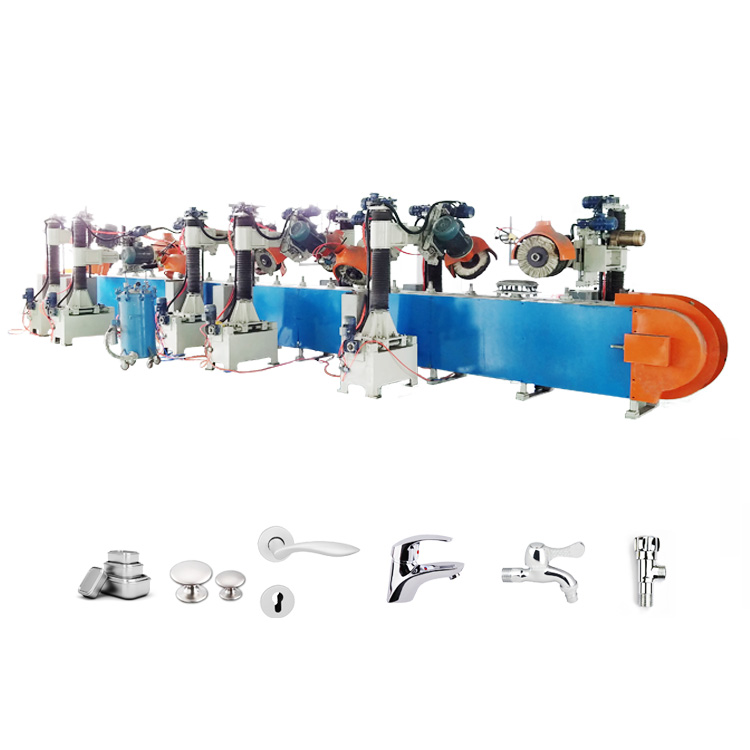

Metal processing industry: used for polishing of metal products such as stainless steel, aluminum alloy, copper, such as hardware accessories, tableware, electronic product housings, etc.
Plastic products industry: used for polishing plastic products such as acrylic, ABS, PC, such as mobile phone cases, electrical housings, auto parts, etc.
Glass products industry: used for polishing glass products such as mobile phone screens, tablet screens, lenses, etc.
Ceramic products industry: used for polishing ceramic products such as ceramic tableware, sanitary ware, etc.
Equipment cleaning: Regularly clean the dust and oil on the surface and inside of the equipment to keep the equipment clean.
Lubrication maintenance: Regularly lubricate moving parts such as chains and bearings to reduce wear and ensure smooth operation of the equipment.
Check fasteners: Regularly check whether the screws, nuts and other fasteners of the equipment are loose, and tighten them in time.
Check electrical components: Regularly check whether electrical components such as motors, cables, switches, etc. are normal, and replace damaged components in time.
Record maintenance information: Record the maintenance information of the equipment for future inquiries and tracking.
Automatic continuous operation:
It can realize the continuous operation process of automatic loading, polishing and unloading. The workpiece passes through each polishing head in turn through the chain transmission, without manual intervention, which greatly improves production efficiency.
Strong adjustability:
The position, angle and pressure of the polishing head can be adjusted according to the shape of the workpiece and the polishing requirements. At the same time, different types of polishing wheels or polishing belts can be selected according to different materials and surface treatment requirements.
High-quality polishing effect:
The collaborative work of multiple heads can ensure that the surface of the workpiece is evenly and finely polished. It can effectively remove scratches, oxide layers and other defects on the surface of the workpiece, so that the surface of the workpiece can achieve high gloss and flatness.
| Origin: | Guangdong, China |
| Condition: | Brand new |
| Shipment inspection video: | Provided |
| Mechanical test report: | Provided |
| Sales type: | General products |
| Core component warranty: | 1 year |
| Core components: | PLC, motor |
| Power (kW): | 3.2 |
| Weight (KG): | 6800 |
| Main selling point: | Easy to operate |
| Warranty: | 1 year |
| Applicable industry: | Manufacturing plant |
| Showroom location: | No |
| Brand: | Zhuosheng |
| Model: | ZS-LT-08 |
| Type: | Other |
| Working principle: | Other |
| Power supply type: | Other |
| Power supply voltage: | 380V |
| Rated input power: | 3.2 (KW) |
| Power: | 3.2 (KW) |
| Polishing wheel diameter: | 500 (mm) |
| Polishing spindle thread: | Tr40x6 |
| After-sales service provided: | Video technical support |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Metal processing industry:
widely used in the production and processing of various metal products, such as hardware accessories, auto parts, mechanical parts, etc. For mass-produced metal workpieces, the chain-type multi-head automatic polishing machine can quickly and efficiently complete the polishing task, improving the appearance quality and market competitiveness of the product.
Furniture manufacturing industry:

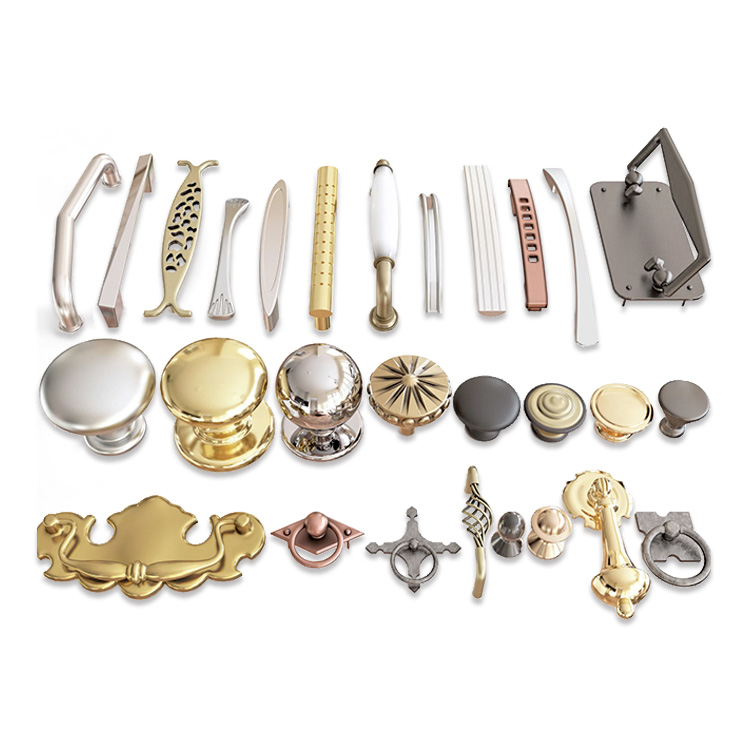

In furniture manufacturing, some metal decorative parts, handles and other parts can be polished using this equipment. It can add a refined appearance to furniture products and improve the overall quality of the product.
Crafts manufacturing industry:
For metal crafts, such as bronze statues, metal ornaments, etc., the chain-type multi-head automatic polishing machine can achieve fine polishing treatment, showing the unique charm and artistic value of crafts.
Workpiece conveying: The workpiece is placed in a specific fixture on the chain and moves as the chain rotates. The design of the fixture is customized to the shape and size of the workpiece to ensure it remains stable during movement. For example, for cylindrical workpieces, the fixture will have corresponding arc-shaped slots to fix the workpiece.
Polishing process: When the workpiece moves under the polishing head, the polishing head starts working. The polishing tool rotates at high speed driven by the motor, contacts the workpiece surface and polishes it. Different polishing heads can perform different polishing operations according to needs, such as some for rough polishing and some for fine polishing. During the entire process, the workpiece passes through each polishing head in sequence driven by the chain to achieve comprehensive and continuous polishing.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
