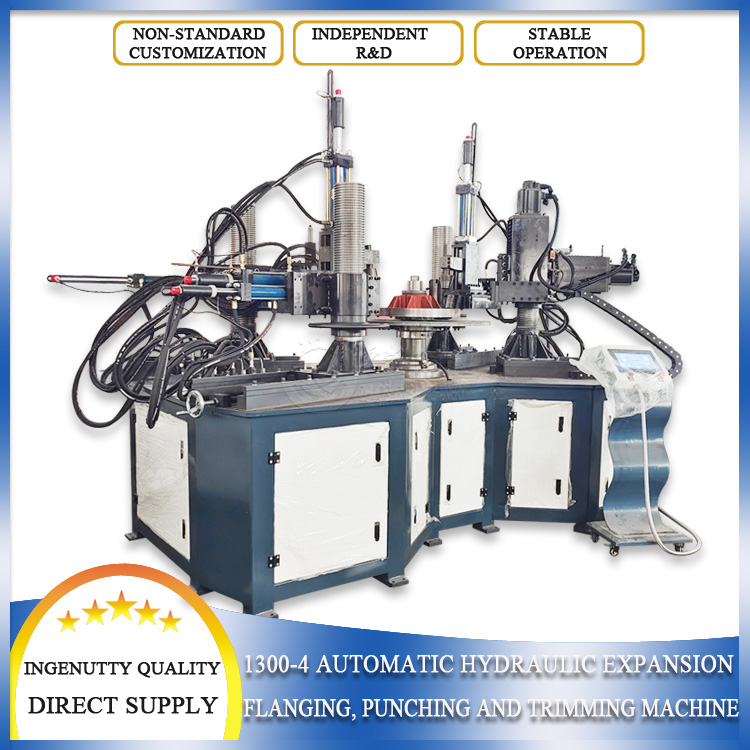

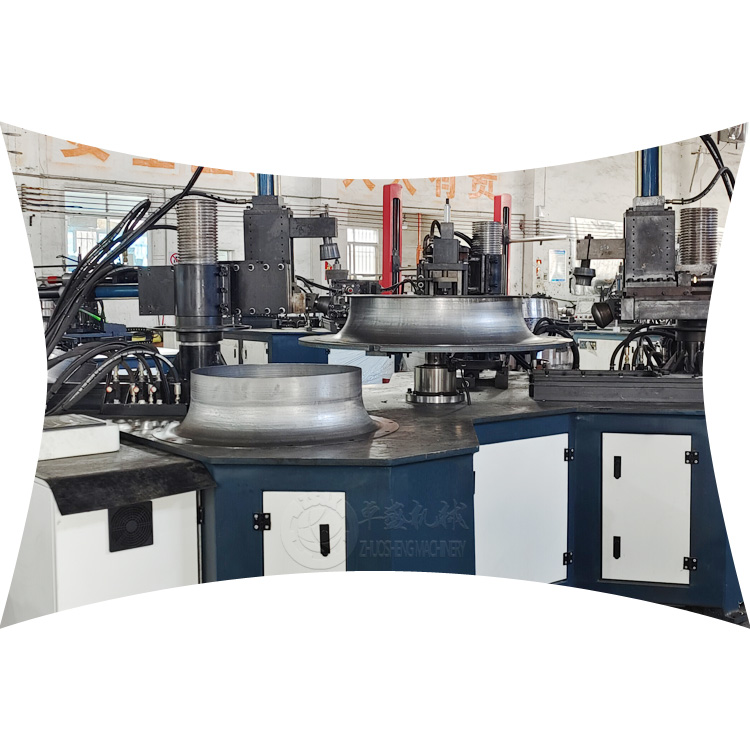

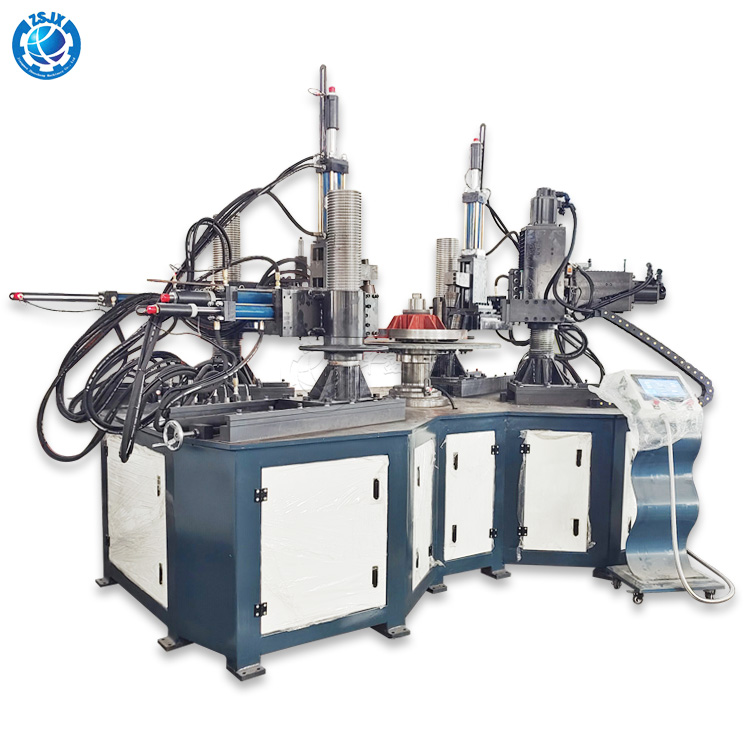

1300-4 Fan air conditioning guide cover automatic hydraulic expansion flanging punching and trimming machine

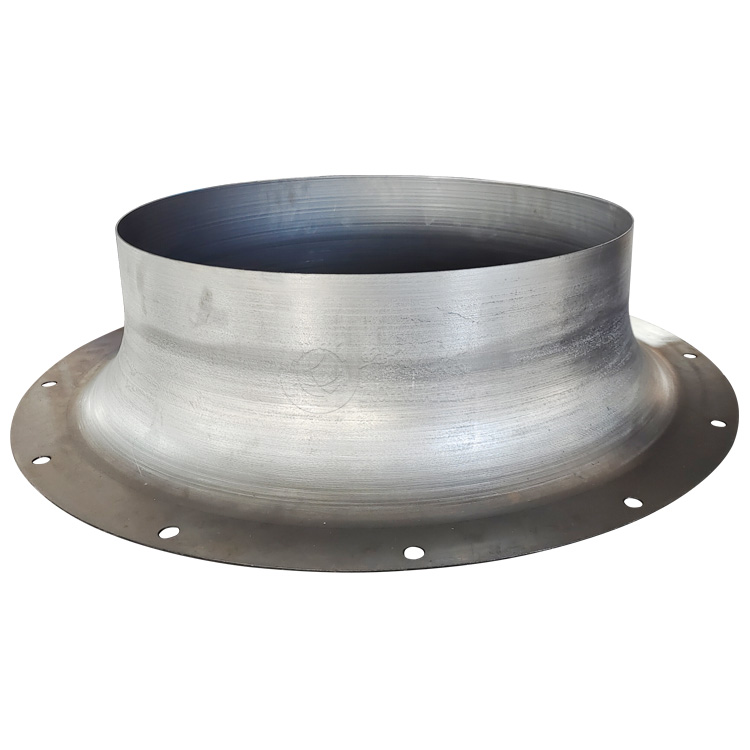

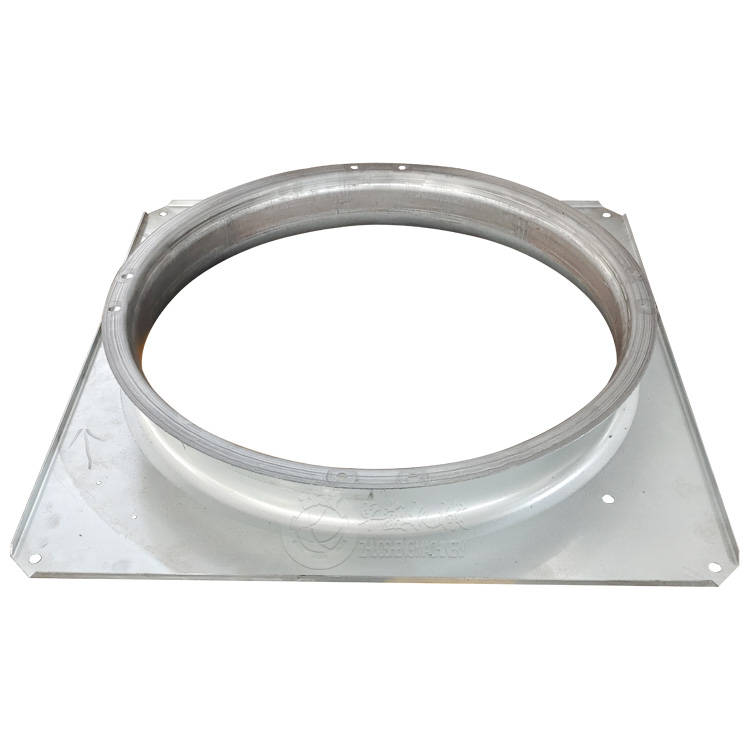

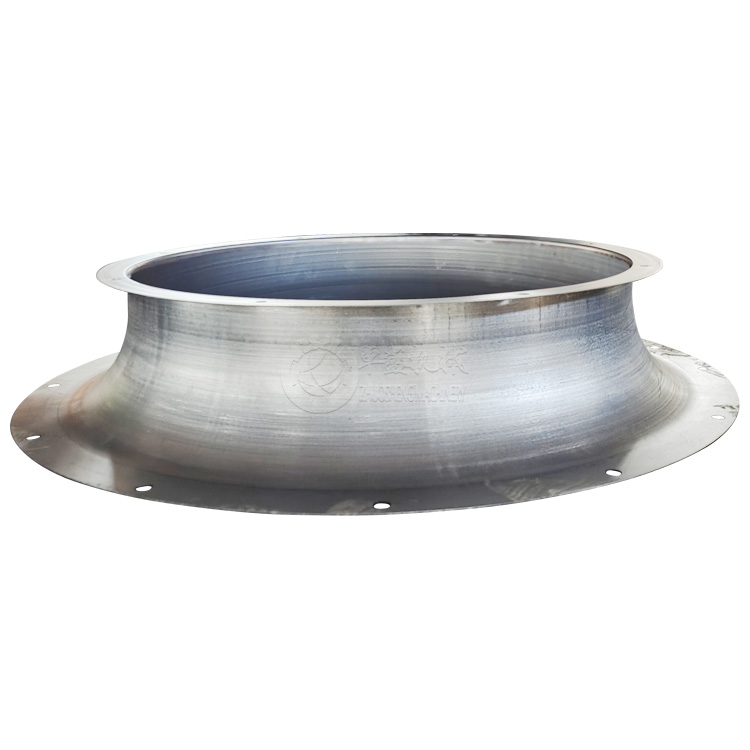

As a well-known domestic flanging machine factory, Jiangmen Zhuosheng Machinery focuses on the research and development and production of hydraulic flanging machines. It now launches a new generation of automatic flanging machines - 1300-4 multi-kinetic flanging machines! Designed for fan shroud flanging machines, air conditioning shroud flanging machines and cylinder flanging machines, it integrates four functions of flaring, flanging, punching and trimming, helping the metal processing industry to increase efficiency!
Core advantages:
Intelligent upgrade: PLC touch screen control, support for program storage and call, switching workpiece debugging time is shortened by 70%, and production consistency reaches the industry-leading level!
Super performance: high-power servo motor + star reducer drive, punching accuracy ±1mm, trimming accuracy ±0.05mm, flange width modular adjustment, finished product is smooth and burr-free.
All-round adaptability: processing size 250-1300mm, thickness 0.6-4mm, punching number 0-100 freely set, hydraulic drive stable output, easy to handle fan/air conditioning shroud and other special-shaped parts processing.
Hard-core design: step-type support device + low-height corner reducer structure, workpiece radial swing <0.3mm, more spacious operation space, annual production of 100 mature models technical escort!
Whether you are looking for a cylindrical flanging machine, a hydraulic flanging machine, or a customized fan shroud flanging machine solution, Zhuosheng Machinery provides a full-process customization service from size to function, truly realizing "one machine for multiple uses, one factory for all"!
The flanging machine is now on sale! Choose Jiangmen Zhuosheng flanging machine sales service, you will get one-stop support from installation training to lifelong maintenance. Contact Jiangmen Zhuosheng Machinery immediately to get exclusive hydraulic flanging machine solutions and open a new chapter of efficient intelligent manufacturing!
Equipment features:
1. Forming configuration saving function, only need to call out the program when changing the workpiece (greatly reduces the difficulty of debugging, saves debugging time, and enhances the consistency of production products).
2. The spindle is equipped with a high-power servo motor and a star reducer to improve the punching efficiency and the accuracy of the indexing.
3. This type of machine with an annual output of about 100 units can provide strong technical support.
4. The support device adopts a cylinder support, which has strong support force and small radial swing when the workpiece rotates.
5. The flange width adjustment adopts a step-type module, the flanging width is more stable, and the adjustment type saves time.
6. Adopting the corner type star reducer, the height of the machine is lower and more convenient to operate.
7. The equipment function can be customized according to customer needs. Support the whole process customization service from size to function, truly realizing "one machine for multiple uses, one factory for all"!
| Voltage： | 380V |
| Power (kW)： | 15 |
| machine type： | Cold Forging Machine |
| weight (kg)： | 5800 |
| warranty： | 1 Year |
| place of origin： | Guangdong, China |
| video outgoing-inspection： | Provided |
| core components： | PLC, Bearing, motor, Pump |
| key selling points： | Automatic, Easy to Operate, Competitive Price, Eco-Friendly, Low Maintenance Cost, High Productivity, Multifunctional |
| Equipment functions: | flaring, flanging, punching, trimming; |
| Equipment processing size: | 250-1300mm |
| Equipment processing thickness: | 0.6-4mm |
| Control mode: | PLC touch screen |
| Number of punching: | 0-100 arbitrary |
| Punching accuracy: | ±1mm |
| Equipment specifications: | 3200x2300x1900mm (length, width and height) |
| Drive mode: | hydraulic |
| Trimming accuracy: | ±0.05mm trimming smooth |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
