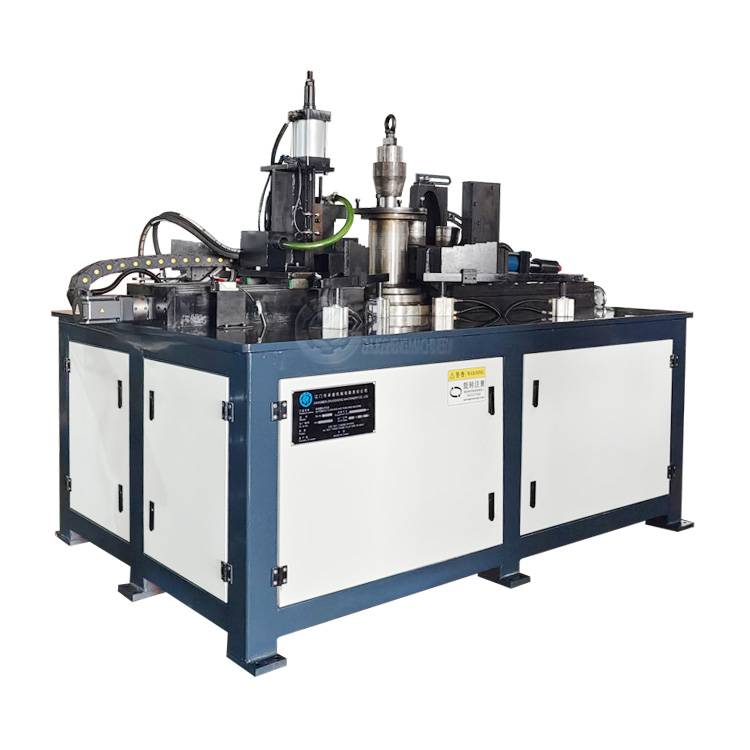

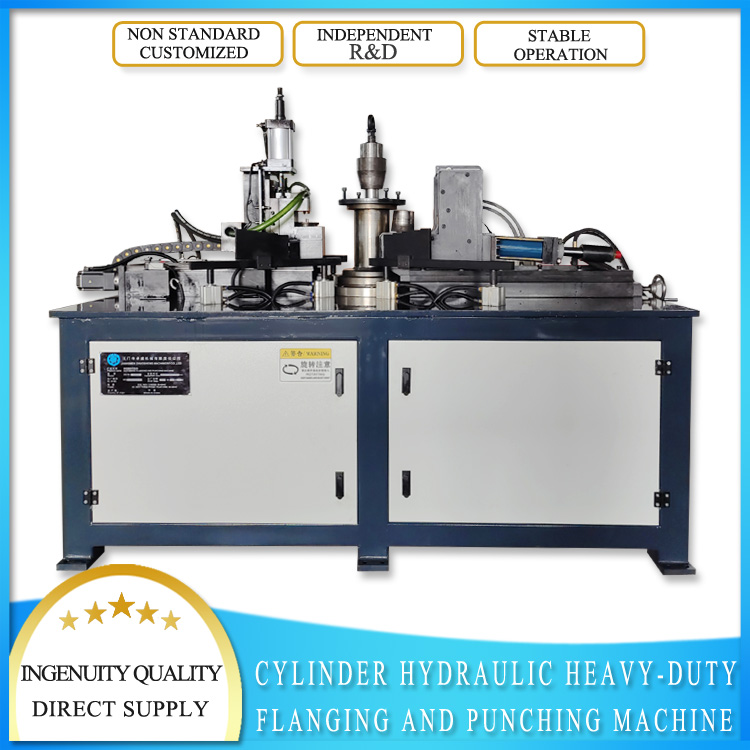

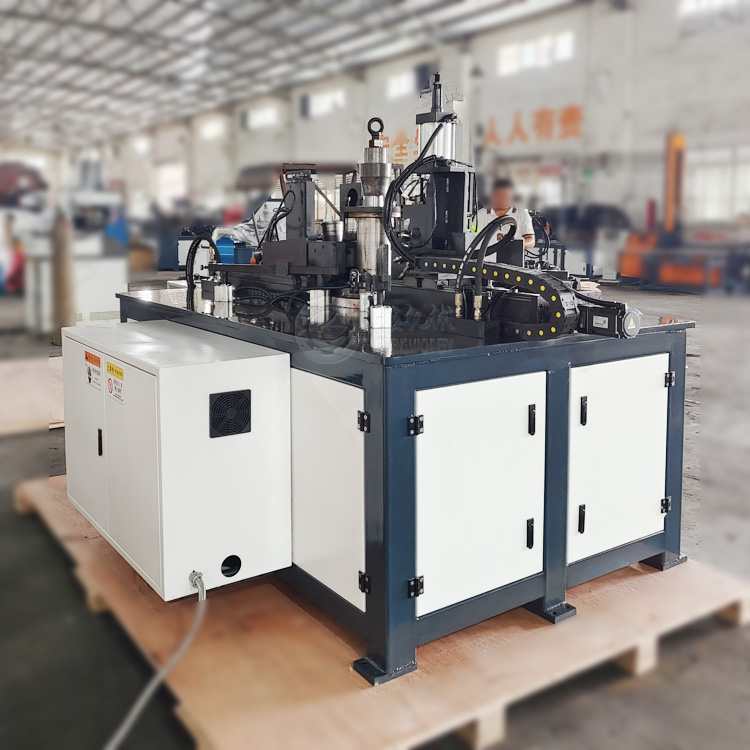

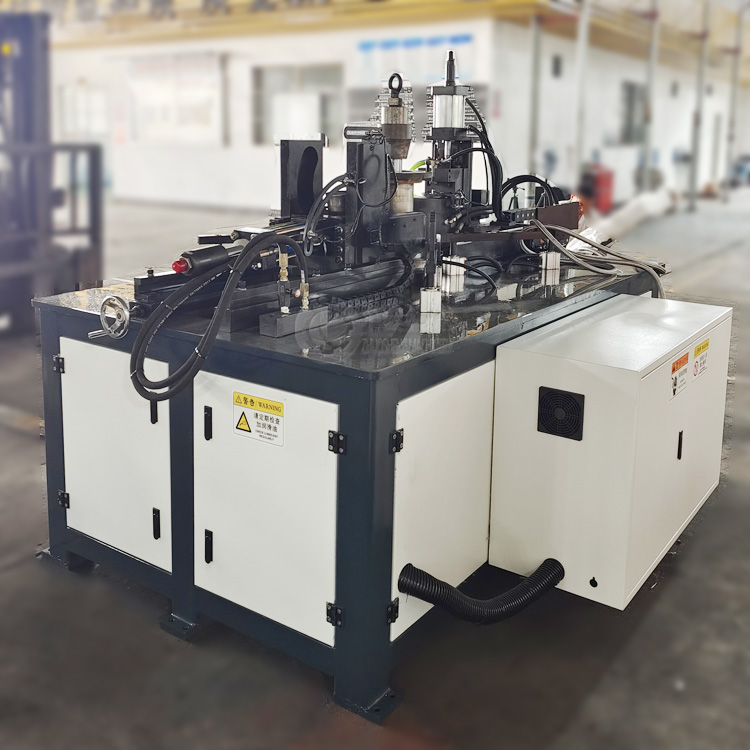

The heavy-duty 800-2-station cylinder flanging and punching machine is a device specially used for metal cylinder processing.
Heavy-Duty Automatic Punching And Flanging Machine Basic Functions:

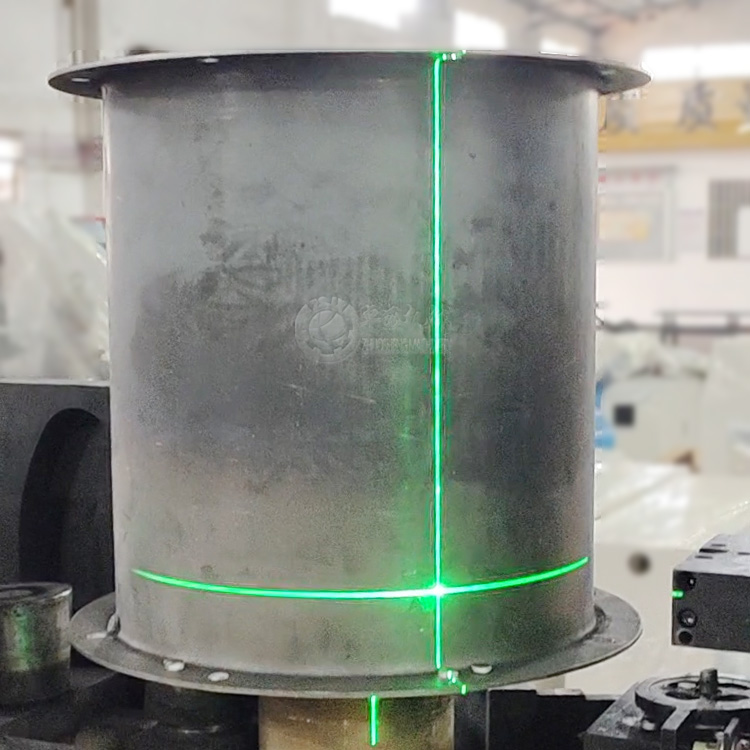

- Flanging function: It can fold the edge of the cylinder to form a specific shape of the folding edge. This flanging process can increase the strength and rigidity of the cylinder, and also facilitate subsequent connection, assembly and other operations. For example, when manufacturing pipe connectors, the cylinder after flanging can be better connected with other components to improve the sealing and stability of the connection.
- Punching function: Punching can be performed at specific positions of the cylinder to meet different usage requirements. The shape, size and position of the punching can be precisely controlled according to specific design requirements, such as punching mounting holes on the cylinder flange.
Heavy-duty structural design:
It has a sturdy body and workbench, which can withstand greater working pressure and weight, ensuring the stability and reliability of the equipment when processing heavy cylinders. This is especially important for processing large, thick-walled metal cylinders, which can ensure that there will be no deformation, vibration and other problems during the processing.
Two-station design:
It has two stations, one for flanging and the other for flange punching of the workpiece, thereby improving the working efficiency of the equipment and reducing the production cycle.
| Place of Origin： | Guangdong, China |
| Machine Type： | Cold Forging Machine |
| Weight (KG)： | 2500 |
| Video outgoing-inspection： | Provided |
| Machinery Test Report： | Provided |
| Marketing Type： | Ordinary Product |
| Warranty of core components： | 1 Year |
| Core Components： | PLC, Motor |
| Warranty： | 1 Year |
| Key Selling Points： | Easy to Operate |
| Applicable Industries： | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Other |
| Showroom Location： | None |
| Power supply voltage:： | AC 380V three-phase four-wire 50-60 Hz |
| Total equipment power:： | 10.5KW |
| Processing product diameter:： | 300-800MM |
| Processing product thickness:： | carbon steel 2-6mm. |
| Flanging height:： | 200-450MM |
| Flanging width:： | 25-50mm |
| Punching diameter:： | 6-13mm |
| Control mode:： | PLC touch screen |
| Drive mode:： | hydraulic/electric |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
- Pressure vessel manufacturing: In the production process of pressure vessels, the cylindrical tank body needs to be flanging and punching to meet the process requirements of welding, installation of accessories, etc. The heavy-duty 800-2-station cylinder flanging and punching all-in-one machine can efficiently and accurately complete these processing tasks to ensure the quality and safety of pressure vessels.
- Auto parts manufacturing: Many of the auto parts such as exhaust pipes, fuel tanks, filters, etc. are cylindrical, and the production of these parts requires flanging and punching. This equipment can meet the high-precision and high-efficiency requirements of auto parts manufacturing.
- Ventilation duct manufacturing: The connection parts of the ventilation duct usually need to be flanging to install flanges and other connectors. At the same time, ventilation holes need to be punched on the ventilation duct. The heavy-duty 800-2-station cylindrical flanging and punching machine can complete these processing operations at one time, improving the production efficiency and quality of the ventilation duct.
- The equipment usually adopts a hydraulic or pneumatic drive system to provide powerful power to drive the movement of the flanging and punching tools. When working, first fix the cylindrical workpiece on the workbench, and then set the parameters of flanging and punching through the control system, such as the angle of the flanging, the position and size of the punching, etc.
- After starting the equipment, the flanging tool and the punching tool will move according to the preset program to complete the flanging and punching of the cylinder. The whole process has a high degree of automation, which can greatly improve production efficiency and processing accuracy.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
