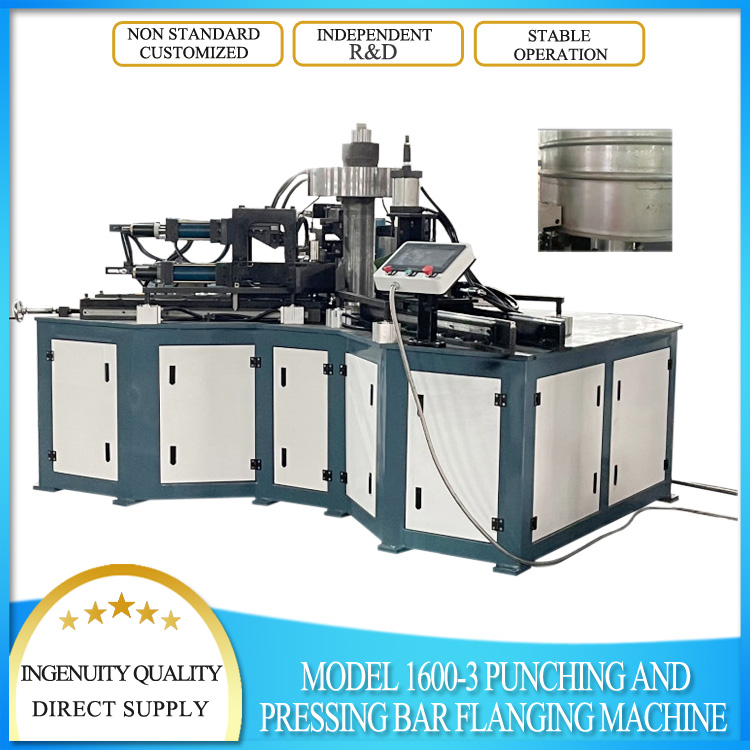

Hydraulic Cylinder Rib Punching Flange Flanging Machine

The automatic hydraulic cylinder embossing, punching and flange flanging machine is a powerful processing equipment.

Structural Features:

1. Sturdy body: It is welded with high-strength steel, with sufficient rigidity and stability to withstand strong pressure and vibration during processing.

2. High-precision molds: Equipped with high-precision rib pressing, punching and flanging molds to ensure processing accuracy and quality. The material of the mold is usually high-quality alloy steel, which has good wear resistance and durability after precision processing and heat treatment.

3. Automatic control system: Advanced automatic control systems such as PLC controllers or CNC systems are used to realize the automatic operation of the equipment. The operator can input the processing parameters through the touch screen or control panel, and the equipment will automatically complete the processing process to improve production efficiency and processing accuracy.

4. Safety protection devices: In order to ensure the safety of the operator, the equipment is equipped with complete safety protection devices, such as protective covers, safety doors, emergency stop buttons, etc. During the operation of the equipment, these devices can effectively prevent accidents.

Advantages:

1. Efficient production: The automated processing process can greatly improve production efficiency and reduce the time and labor intensity of manual operation.

2. High-precision processing: High-precision molds and automated control systems ensure the stability of processing accuracy and quality.

3. Versatility: One device can complete multiple processing operations such as rib, punching and flange flanging, with strong versatility and adaptability.

4. Easy operation: The automated control system makes the operation of the equipment easier, and operators only need simple training to master the operation of the equipment.

5. Safe and reliable: The perfect safety protection device and stable body structure ensure the safe and reliable operation of the equipment and reduce the risk of accidents.

1. Pressure vessel manufacturing: In the production process of pressure vessels, the cylinder needs to be processed by rib pressing, punching and flange flanging to meet the structural strength and connection requirements of the container. The automatic hydraulic cylinder rib punching flange flanging machine can efficiently complete these processing tasks and improve the production efficiency and quality of pressure vessels.

2. Pipeline engineering: In the pipeline system, cylindrical pipe connectors usually need to be processed by rib, punching and flange flanging to connect with other pipeline components. This equipment can provide high-quality processing solutions for pipeline engineering.

3. Mechanical manufacturing: In the field of mechanical manufacturing, some cylindrical parts also need to be processed by rib, punching and flange flanging to meet specific structural and connection requirements. The automatic hydraulic cylinder rib punching flange flanging machine can provide efficient and precise processing services for mechanical manufacturing enterprises.

1. Hydraulic drive system: The high-pressure oil generated by the hydraulic pump drives the actuators such as hydraulic cylinders or hydraulic motors. These actuators provide powerful power to drive tools such as embossing, punching and flanging to perform precise processing actions.

2. Embossing process: Through a specific embossing die, regular raised patterns are formed on the surface of the cylinder to increase the strength and rigidity of the cylinder. The depth and spacing of the embossing can be adjusted as needed.

3. Punching operation: Use the punching die to punch out the required holes on the cylinder. The size and position of the punching can be precisely controlled by programming or manual adjustment.

4. Flange flanging: Use the flanging die to fold the edge of the cylinder into a flange shape for connection with other components. The angle and size of the flanging can be adjusted according to different flange standards.

We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.

We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.

As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.

Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.

Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.

Q: When shipping, what kind of packing?

A: We use standard export packing.

Q: What are your delivery terms?

A: EXW, FOB, CFR, CIF.

Q: What's your delivery time?

A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.

Q: Can you make it as required?

A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.

Q: Do you have professional engineers?

A: Yes.we have professional engineers and designers.

Q: Can you provide customzied machines?

A:Yes, we can design and manufacture according to your specific requirements.
