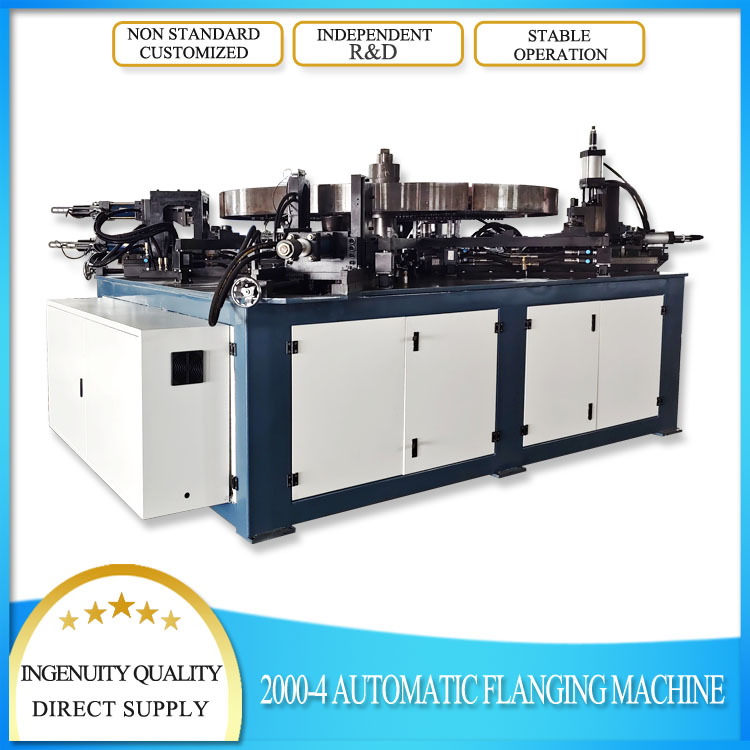

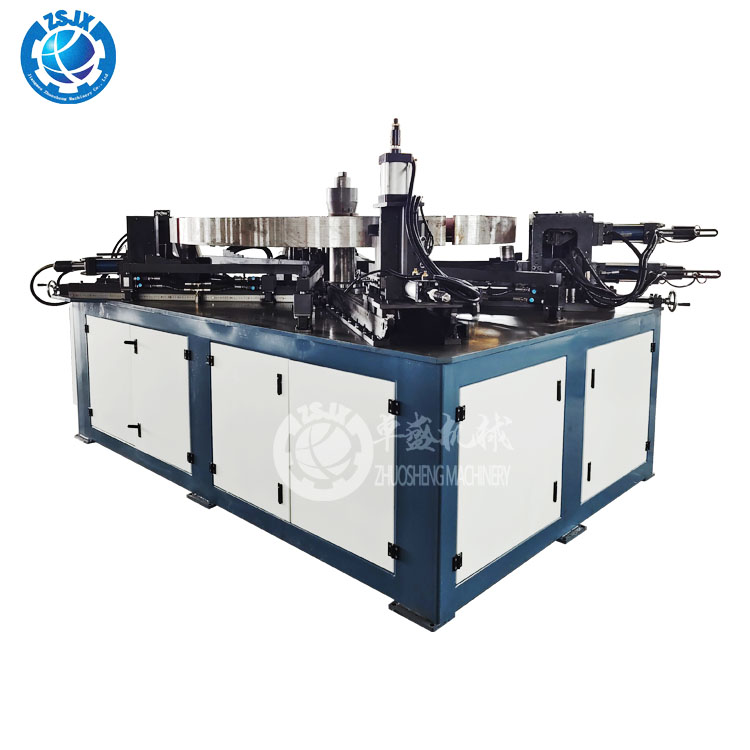

The shell flanging, punching, and bell-shaped curling machine for axial flow fans, negative pressure fans, vibrating screens, and vacuum loaders is a multifunctional processing equipment.
Structural Features:
1. Sturdy body: It is welded with high-strength steel, with sufficient rigidity and stability to withstand strong pressure and vibration during processing.
2. High-precision molds: Equipped with high-precision flanging, punching, and curling molds to ensure processing accuracy and quality. The mold is usually made of high-quality alloy steel, which has good wear resistance and durability after precision processing and heat treatment.
3. Automatic control system: Advanced automatic control systems such as PLC controllers or CNC systems are used to realize the automatic operation of the equipment. Operators can input processing parameters through the touch screen or control panel, and the equipment will automatically complete the processing process to improve production efficiency and processing accuracy.
4. Multifunctional design: One device can complete the flanging, punching, curling and other processing operations of the shells of various equipment such as axial flow fans, negative pressure fans, vibrating screens, vacuum loaders, etc., with strong versatility and adaptability.
Advantages:
1. Efficient production: The automated processing process can greatly improve production efficiency and reduce the time and labor intensity of manual operation.
2. High-precision processing: High-precision molds and automated control systems ensure the stability of processing accuracy and quality.
3. Versatility: One device can complete the processing operations of various equipment shells, with strong versatility and adaptability.
4. Easy operation: The automated control system makes the operation of the equipment easier, and the operator only needs simple training to master the operation method of the equipment.
5. Reduce costs: Multifunctional all-in-one machines can reduce the investment cost and floor space of equipment, improve production efficiency and reduce production costs.
| Origin: | Guangdong, China |
| Machine type: | cold forging machine |
| Weight (KG): | 4500 |
| Video factory inspection: | provided |
| Mechanical test report: | provided |
| Sales type: | general products |
| Core component warranty: | 1 year |
| Core components: | PLC, engine, bearing, gearbox, motor, gear, pump |
| Warranty: | 1 year |
| Main selling point: | easy to operate |
| Applicable industries: | building materials stores, machinery repair shops, manufacturers, others, ventilation equipment manufacturers |
| Showroom location: | none |
| Brand: | Zhuosheng |
| Condition: | brand new |
| Power type: | AC 380V three-phase four-wire 50-60Hz |
| Equipment function: | flanging + punching + flare + curling |
| Equipment power: | 38kw |
| Equipment specifications: | 2800*2200*1700 (mm) |
| Workpiece diameter: | 450-2000 (mm) |
| Thickness of workpiece: | 0.8-6 (mm) |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
1. Pressure vessel manufacturing: In the production process of pressure vessels, the cylinder needs to be processed by rib pressing, punching and flange flanging to meet the structural strength and connection requirements of the container. The automatic hydraulic cylinder rib punching flange flanging machine can efficiently complete these processing tasks and improve the production efficiency and quality of pressure vessels.
2. Pipeline engineering: In the pipeline system, cylindrical pipe connectors usually need to be processed by rib, punching and flange flanging to connect with other pipeline components. This equipment can provide high-quality processing solutions for pipeline engineering.
3. Mechanical manufacturing: In the field of mechanical manufacturing, some cylindrical parts also need to be processed by rib, punching and flange flanging to meet specific structural and connection requirements. The automatic hydraulic cylinder rib punching flange flanging machine can provide efficient and precise processing services for mechanical manufacturing enterprises.
1. Hydraulic drive system: The high-pressure oil generated by the hydraulic pump drives actuators such as hydraulic cylinders or hydraulic motors. These actuators provide powerful power to drive tools such as flanging, punching, and curling to perform precise processing actions.
2. Flanging process: Through a specific flanging die, the edge of the shell is folded into a specific shape to increase the strength and sealing of the shell. The angle and size of the flanging can be adjusted as needed.
3. Punching operation: Use the punching die to punch out the required holes on the shell to install various accessories or for ventilation and heat dissipation. The size and position of the punching can be precisely controlled by programming or manual adjustment.

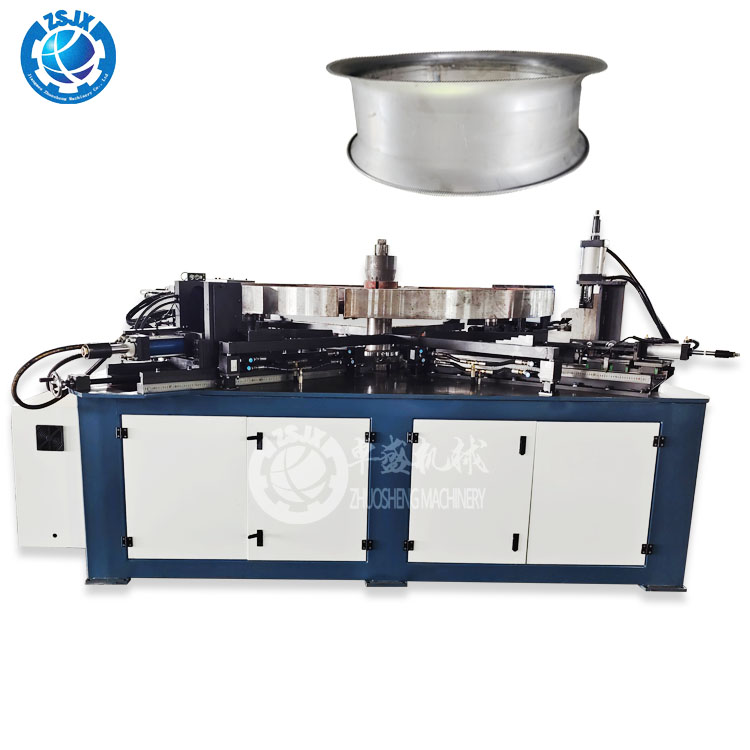

4. Bell-shaped curling: Use the curling die to roll the edge of the shell into a bell-shaped shape to improve the beauty and practicality of the shell. The angle and size of the curling can be adjusted according to different requirements.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
