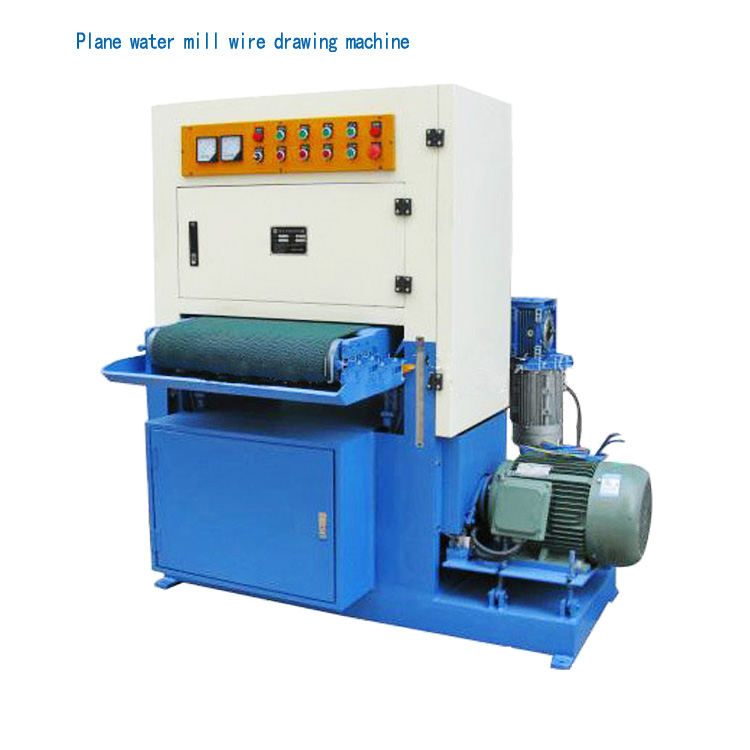

Flat water grinding wire drawing machine is a kind of equipment used for metal plane processing, mainly used for water grinding and wire drawing on the surface of metal materials. It combines water grinding process with wire drawing process, which can effectively improve the surface quality and appearance of metal plane.
Metal Wire Drawing Deburring Automatic Polishing Machine Structure:
Workbench:
used to place the metal workpiece to be processed, usually with a large area and a flat surface to ensure that the workpiece can be placed stably. The workbench may also be equipped with a fixture to fix the workpiece to prevent the workpiece from moving during processing.
Grinding head and wire drawing head:
Grinding head and wire drawing head are key components. The speed of the grinding head can be adjusted to adapt to different processing requirements and metal materials. The pressure and speed of the wire drawing head can also be controlled, and its structural design must ensure the uniformity of the wire drawing texture.
Water supply and drainage system:
The water supply system includes a water tank, a water pump and a nozzle. The water tank is used to store water, and the water pump delivers water to the nozzle, which sprays the water evenly on the contact area between the grinding tool and the workpiece. The drainage system is responsible for collecting and discharging wastewater containing debris generated during the processing.
Transmission system:
Including motors, belts, chains or gears, etc., which are used to transmit power to the grinding head and wire drawing head to ensure that they can work stably and efficiently.
High processing quality:
Water grinding can accurately control the flatness of the metal surface and remove tiny defects. The surface texture after wire drawing is uniform and beautiful, which can effectively improve the appearance quality of metal products.
Wide range of applications:
It can process a variety of metal materials, such as stainless steel, aluminum alloy, copper plate, etc. It is suitable for large-area metal sheet processing and can also process smaller-sized metal parts.
Diverse surface effects:
In addition to the conventional wire drawing effect, you can also achieve wire drawing effects of different thicknesses and directions by replacing different wire drawing tools or adjusting processing parameters to meet different design and decoration needs.
| Feed diameter: | 5mm |
| Discharge diameter: | 1-4mm |
| Condition: | Brand new |
| Shipment video inspection: | Provided |
| Mechanical test report: | Provided |
| Sales type: | General products |
| Core component warranty: | 1 year |
| Core components: | motor, PLC |
| Origin: | Guangdong, China |
| Weight: | 2000 |
| Warranty: | 1 year |
| Main selling point: | Easy to operate |
| Applicable industries: | Manufacturing plants, others |
| Showroom location: | None |
| Brand: | Zhuosheng |
| Voltage: | 380V 50HZ |
| Power: | 4.875KW |
| Dimensions (length * width * height): | 1300 * 1150 * 1700mm (mm) |
| Power type: | plug-in power supply |
| Conveying speed: | 13m/min |
| Net weight: | 2000kg |
| Sand belt specifications: | 2100 * 150mm |
| Sand belt linear speed: | 15.85m/s |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
1. Building decoration industry
In building decoration, flat water grinding wire drawing machine is often used to process metal plates, such as stainless steel plates and aluminum plates. These plates that have been treated with water grinding wire drawing can be used for building facade decoration, elevator car inner wall, interior decoration wall, etc. For example, in the elevator car of a high-end office building, the use of stainless steel plates that have been treated with wire drawing as inner wall decoration materials can create a delicate and high-end visual effect.

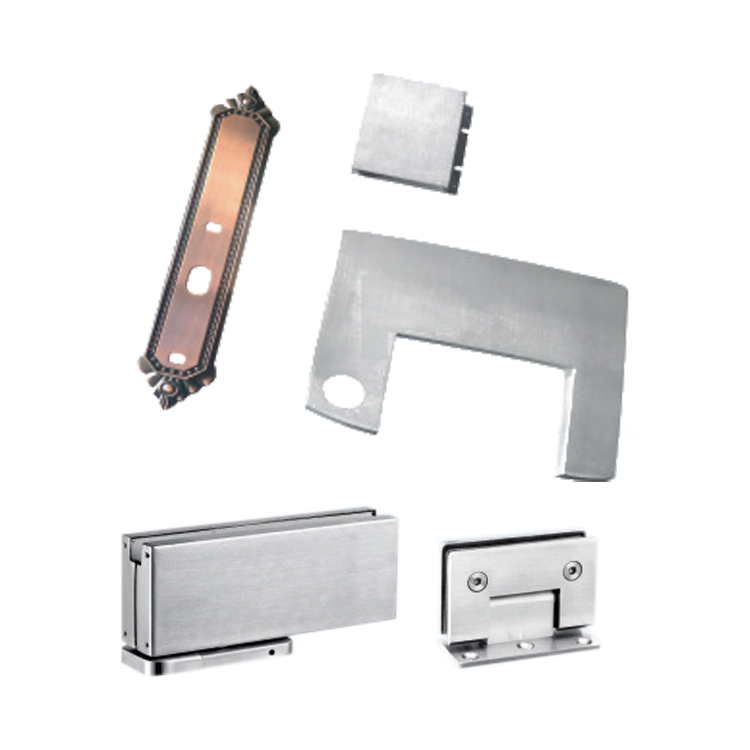

2. Hardware products industry
For hardware products such as metal handles, hinges, and metal furniture panels, water grinding wire drawing by this machine can improve the surface quality and aesthetics of the product. For example, after the metal handle is treated with wire drawing, it not only feels better, but also has a more textured appearance, which can meet consumers' dual requirements for product quality and appearance.
3. Automobile parts manufacturing field
There are many metal parts in the interior of the car that can be processed using a flat water grinding wire drawing machine. For example, metal decorative strips on the center console of a car, metal frames on the interior of a car door, etc., after brushing, can make the car interior more upscale, match the design style of the whole car, and enhance the luxury of the car.
4. Electronic product shell processing
The metal shells of electronic products such as mobile phones, tablets, and laptops use flat water grinding wire drawing machines in the production process. By water grinding and brushing the shell, different surface texture effects can be obtained, making the product appearance more personalized and fashionable, while also improving the wear resistance and anti-fingerprint ability of the shell.
Water grinding part:
The equipment drives the grinding head to rotate through the motor. The grinding head is generally equipped with grinding tools such as grinding wheels or sanding belts. At the same time, there is a water supply system to spray water to the contact area between the grinding tool and the workpiece. The function of water is to cool the grinding tool and the workpiece, reduce the heat generated by friction, and wash away the debris generated during the grinding process. With the high-speed rotation of the grinding tool and the assistance of water, the metal plane is ground to remove the oxide layer, defects, etc. on the surface, making the plane smoother.
Wire drawing part:
After completing the water grinding (some equipment can also directly draw), the metal plane is wire drawn using a wire drawing wheel or a wire drawing belt. The surface of the wire drawing tool has a regular texture. When it contacts and moves relative to the metal plane, it will draw fine lines on the metal surface, thereby changing the appearance of the metal plane and increasing the texture.
