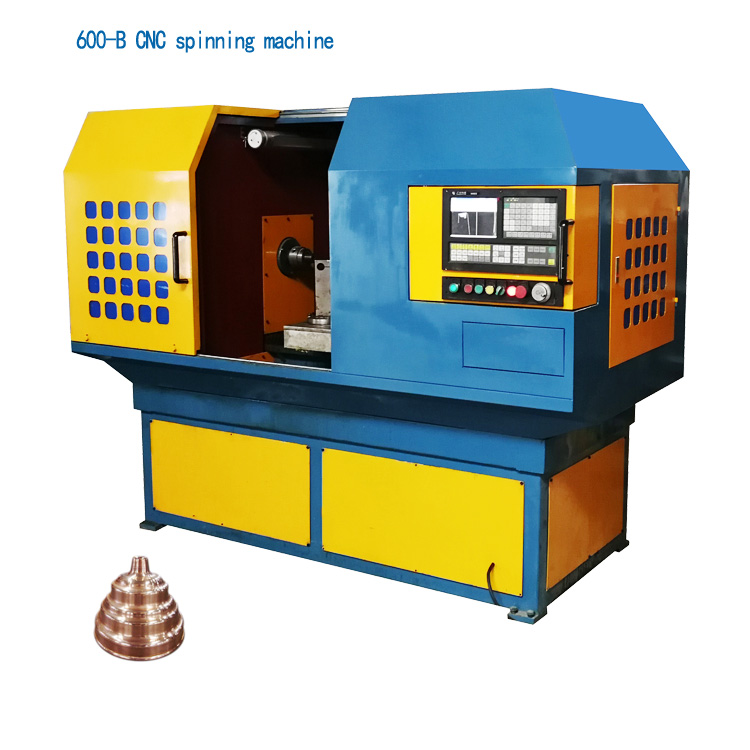

Our Mini Automatic Metal CNC Spinning Lathe Machine is an innovative masterpiece in the field of metal processing, bringing you efficient, precise and reliable forming solutions. Our CNC Spinning Lathe Machine is based on advanced metal spinning technology. This unique processing method allows the metal material to undergo plastic deformation during the processing process, and the internal arrangement of the molecules is more compact, thereby improving the strength and density of the product. With mature CAD drawing programming software functions, the motion trajectory of the spinning wheel can be straight lines, arcs, multi-arc connecting lines and combined curves, etc. And input into the computer for standardized programming of passes. The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
Mini Automatic Metal Cnc Spinning Lathe Machine Structure and Components:
Sturdy body:
The body made of high-strength steel has excellent stability and shock resistance, providing a solid foundation for high-precision processing.
Precise spinning wheel system:
The spinning wheel is the core component of the CNC spinning machine. Our spinning wheel is precisely processed and strictly tested to ensure that it can stably apply pressure during the processing process to achieve precise forming.
Advanced CNC system:
Equipped with a well-known brand of CNC system, it has powerful computing power and stable performance, and can accurately control parameters such as spindle rotation speed and spinning wheel feed speed to ensure processing accuracy and consistency.
Efficient transmission system:
Adopting high-quality transmission components, such as precision ball screws, etc., with high transmission accuracy and small thermal deformation, it can ensure the long-term stable operation of the equipment.
High-precision forming:
It can accurately shape various complex shapes, and the runout accuracy of the forming busbar relative to the shaft core can reach the industry-leading 0.02mm.
Efficient production:
Fast processing speed, greatly shortening the production cycle, providing a strong driving force for your business development.
Wide material applicability:
Whether it is stainless steel, iron, aluminum alloy, titanium alloy or copper and other metal materials, it can be easily handled.
Intelligent operation:
Equipped with advanced CNC system, easy to operate, allowing you to easily control the entire processing process.
| Power supply type: | AC 380V three-phase four-wire |
| Maximum spinning product diameter (mm): | 600 (sheet diameter) |
| Processing capacity: | light |
| Maximum workpiece weight (kg): | 40.8 |
| Spindle motor power (kW): | 7.5 |
| Number of spindles: | single axis |
| Spindle speed: | 100-1800 rpm |
| Stroke (X axis) (mm): | 400 mm |
| Stroke (Z axis) (mm): | 310 mm |
| Positioning accuracy (mm): | ±0.02 |
| Repeat accuracy (X/Y/Z) (mm): | ±0.02 |
| Origin: | Guangdong, China |
| Installable tool positions: | 6+6 |
| Weight (KG): | 3200 |
| Warranty: | 1 year |
| Mechanical inspection report: | provided |
| Video factory inspection: | provided |
| Core component warranty: | 1 year |
| Screw width (mm): | 30 mm |
| Feed speed: | 5 meters/minute |
| Dimensions (length*width*height): | 1800x2000x1600 (mm) |
| Brand: | Zhuosheng |
| Model number: | ZS-XY-600-B |
| Automatic oiling system: | AC 220V 25W1 |
| CNC system: | GuGe |
| Main selling point: | Multi-function |
| Type: | Cold bending machine |
| Control method: | PLC touch screen CNC |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Powerful programming function:
With mature CAD drawing programming software function, the motion trajectory of the rotary wheel can be straight line, arc, multi-arc connecting line and combined curve, etc., and can be input into the computer for pass standardization programming.
Easy operation:
The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
Safety protection function:
It has the function of "copying" the core mold contour, that is, when adjusting the process and recording and returning the teaching, the rotary wheel will not collide with the core mold. At the same time, it is equipped with travel limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
Multifunctional processing:
In the same machine tool, multiple processing functions such as trimming, flanging, curling, shrinking, rolling, etc. can be completed, which greatly improves the utilization rate of the equipment.
