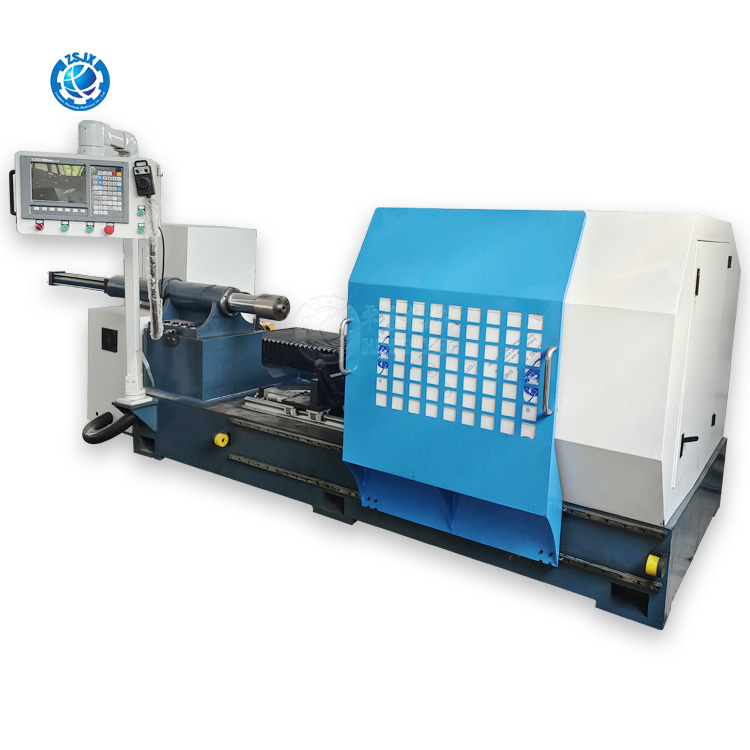

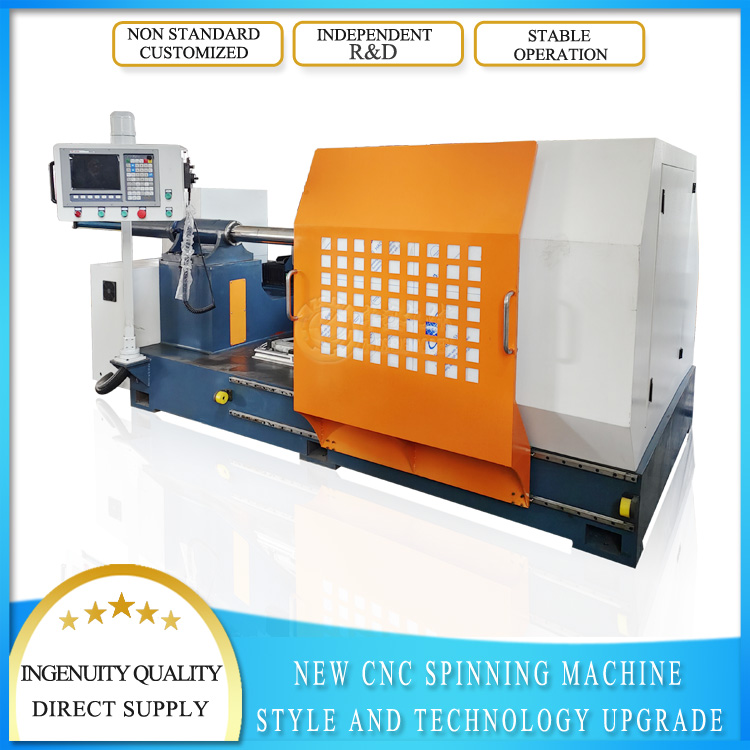

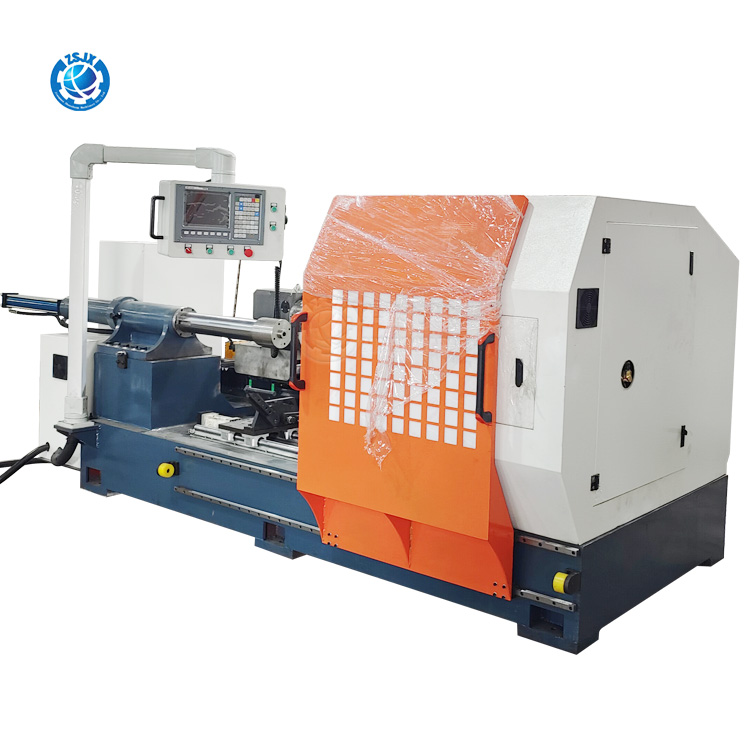

The Hydraulic Automatic CNC Metal Spinning Machine makes use of various new techniques that have been developed to automate the industrial spinning process. Designed for modern sheet metal work, featuring advanced CAD drawing programming software, this machine is capable of performing spinning operations with dimensions, design profiles, and production tolerances that are very complex. Such dimensions and profiles can be imported into the system and set out in computing code, providing the same speed and precision for the spinning process.
The operator can take advantage of the horizontal and vertical plane on the control panel to input spinning parameters, and store processes, using the keyboard. An easy modification combined with a possibility of creating a mold can be critical for many metal forming processes and is integrated into the Rotating Spinning Powerhead. A critical component of the machine includes “core mold contour protection” which helps to preclude interference between the active part of the spinning wheel and the core mold.
Spindle and feed speeds during program execution can be temporarily turned off to provide flexibility in tasks. Furthermore, the controller's architecture employs various defense mechanisms such as a travel limit, a software and hardware security, and an integrated fault detection with alarm. The machine also possesses a self-check mechanism for detecting and fabricating faults at the time of booting with additional injection for overload protection.
This multi-functional machine can perform several operations, including, but not limited to, trimming, flanging, curling, and shrinking and rolling. It allows the attainment of workpieces with specified values such as surface properties, diameter, and thinning rate, thus, it is suitable for the manufacture of tailored attachments. Being a trustworthy CNC Metal Spinning Machine Manufacturer in China, we offer consistent, effective high-performance solutions to satisfy various industrial requirements to exacting standards.
Hydraulic Automatic Cnc Metal Spinning Machine Structure and Components:
Sturdy body:
The body made of high-strength steel has excellent stability and shock resistance, providing a solid foundation for high-precision processing.
Precise spinning wheel system:
The spinning wheel is the core component of the CNC spinning machine. Our spinning wheel is precisely processed and strictly tested to ensure that it can stably apply pressure during the processing process to achieve precise forming.
Advanced CNC system:
Equipped with a well-known brand of CNC system, it has powerful computing power and stable performance, and can accurately control parameters such as spindle rotation speed and spinning wheel feed speed to ensure processing accuracy and consistency.
Efficient transmission system:
Adopting high-quality transmission components, such as precision ball screws, etc., with high transmission accuracy and small thermal deformation, it can ensure the long-term stable operation of the equipment.
High-precision forming:
It can accurately shape various complex shapes, and the runout accuracy of the forming busbar relative to the shaft core can reach the industry-leading 0.02mm.
Efficient production:
Fast processing speed, greatly shortening the production cycle, providing a strong driving force for your business development.
Wide material applicability:
Whether it is stainless steel, iron, aluminum alloy, titanium alloy or copper and other metal materials, it can be easily handled.
Intelligent operation:
Equipped with advanced CNC system, easy to operate, allowing you to easily control the entire processing process.
| Power supply type: | AC 380V three-phase four-wire |
| Maximum spinning product diameter (mm): | 1200 (sheet diameter) |
| Processing capacity: | heavy |
| Maximum workpiece weight (kg): | 550 |
| Spindle motor power (kW): | 23 |
| Number of spindles: | single axis |
| Spindle speed: | 10-750 rpm |
| Stroke (X axis) (mm): | 800 mm |
| Stroke (Z axis) (mm): | 610 mm |
| Positioning accuracy (mm): | ±0.02 |
| Repeat accuracy (X/Y/Z) (mm): | ±0.01 |
| Origin: | Guangdong, China |
| Installable tool positions: | 6+6 |
| Weight (KG): | 7600 |
| Warranty: | 1 year |
| Mechanical inspection report: | provided |
| Video factory inspection: | provided |
| Core component warranty: | 1 year |
| Screw width (mm): | 45 mm |
| Feed speed: | 5 meters/minute |
| Dimensions (length*width*height): | 3200x2000x1800 (mm) |
| Brand: | Zhuosheng |
| Model number: | ZS-XY-1200 |
| Automatic oiling system: | AC 220V 25W1 |
| CNC system: | Diens/Gugo |
| Main selling point: | Multi-function |
| Type: | Cold bending machine |
| Control method: | PLC touch screen CNC |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Powerful programming function:
With mature CAD drawing programming software function, the motion trajectory of the rotary wheel can be straight line, arc, multi-arc connecting line and combined curve, etc., and can be input into the computer for pass standardization programming.
Easy operation:
The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
Safety protection function: It has the function of "copying" the core mold contour, that is, when adjusting the process and recording and returning the teaching, the rotary wheel will not collide with the core mold. At the same time, it is equipped with travel limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
Multifunctional processing: In the same machine tool, multiple processing functions such as trimming, flanging, curling, shrinking, rolling, etc. can be completed, which greatly improves the utilization rate of the equipment.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
