metal spinning machine Factory

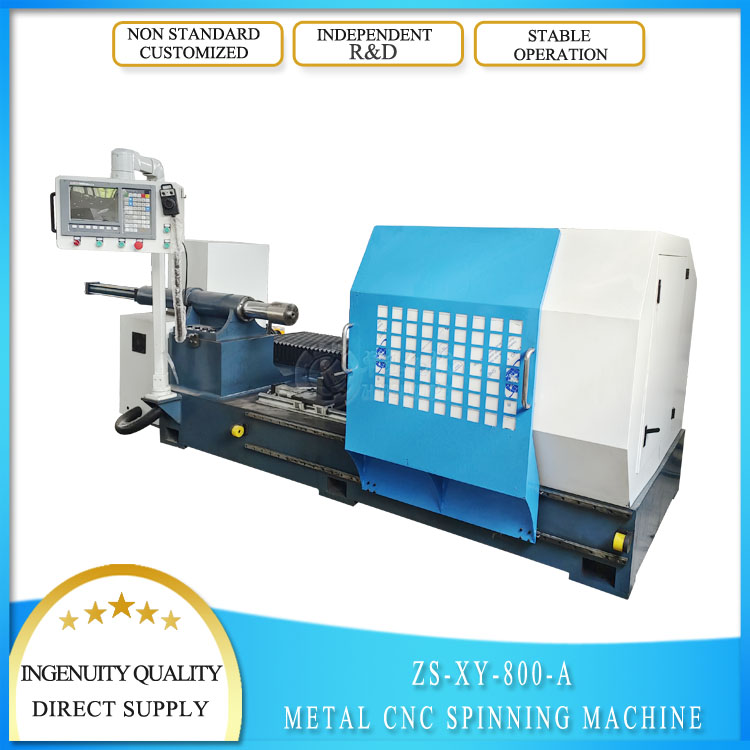

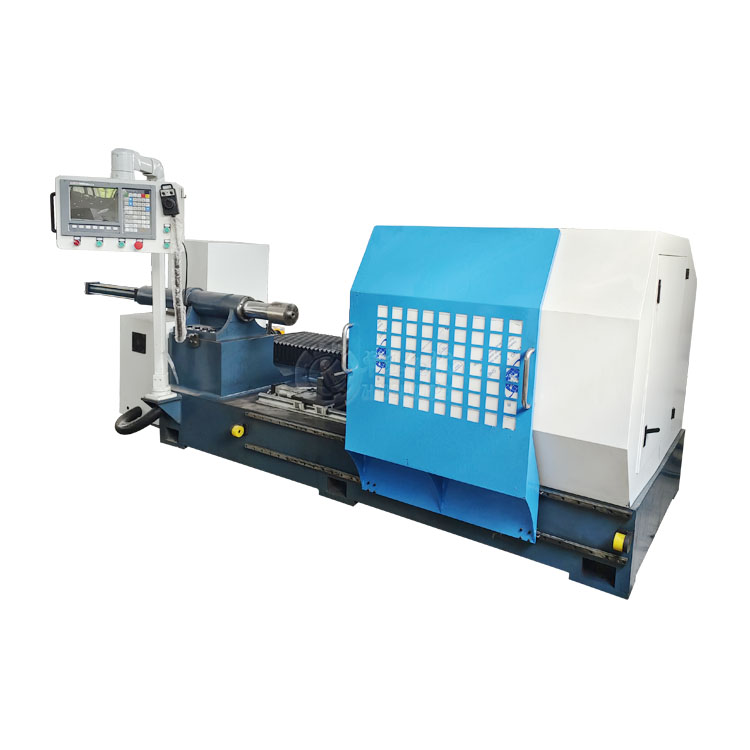

CNC Metal Spinning lathe
CNC spinning machine- a sharp tool for metal processing!
Hey, friends! Today, let's get to know this sharp tool carefully built by our CNC spinning machine manufacturer.
▶Powerful functions:
It has mature CAD drawing programming software, which can draw various trajectories and standardize programming.
Operators can easily input process parameters and spinning passes through the keyboard and panel, and can also edit, store and call them at will.
▶Intimate protection function:
This CNC spinning machine has a "copy" protection function for the core mold contour, and the spinning wheel will not collide with the core mold during process adjustment.
There are also travel limits, software and hardware limit protection, etc., which automatically detect faults when turned on to ensure safe use.
▶Meet diverse needs:
This metal plate spinning machine can spin various special-shaped parts according to different requirements to ensure that the size meets the requirements.
It can complete various types such as arcs, multiple arcs, straight lines, curves, and thinning.
▶Multi-function integration:
On this CNC metal spinning machine, the same machine tool can complete multiple processing functions such as trimming, flanging, and curling, improving production efficiency and reducing costs.
Choosing our CNC spinning machine manufacturer means choosing quality, innovation and professionalism. Let us work together to create a bright future for metal processing with CNC spinning machines!
High-precision forming:
It can accurately shape various complex shapes, and the runout accuracy of the forming busbar relative to the shaft core can reach the industry-leading 0.02mm.
Efficient production:
Fast processing speed, greatly shortening the production cycle, providing a strong driving force for your business development.
Wide material applicability:
Whether it is stainless steel, iron, aluminum alloy, titanium alloy or copper and other metal materials, it can be easily handled.
Intelligent operation:
Equipped with advanced CNC system, easy to operate, allowing you to easily control the entire processing process.
| Power supply type: | AC 380V three-phase four-wire |
| Maximum spinning product diameter (mm): | 800 (sheet diameter) |
| Processing capacity: | heavy |
| Maximum workpiece weight (kg): | 50.2 |
| Spindle motor power (kW): | 18 |
| Number of spindles: | single axis |
| Spindle speed: | 10-1400 rpm |
| Stroke (X axis) (mm): | 600 mm |
| Stroke (Z axis) (mm): | 600 mm |
| Positioning accuracy (mm): | ±0.02 |
| Repeat accuracy (X/Y/Z) (mm): | ±0.01 |
| Origin: | Guangdong, China |
| Installable tool positions: | 6 |
| Weight (KG): | 4800 |
| Warranty: | 1 year |
| Mechanical inspection report: | provided |
| Video factory inspection: | provided |
| Core component warranty: | 1 year |
| Screw width (mm): | 30 mm |
| Feed speed: | 5 meters/minute |
| Dimensions (length*width*height): | 2800x1800x1900 (mm) |
| Brand: | Zhuosheng |
| Model number: | ZS-XY-800-A |
| Automatic oiling system: | AC 220V 25W1 |
| CNC system: | Diens/Gugo |
| Main selling point: | Multi-function |
| Type: | Cold bending machine |
| Control method: | PLC touch screen CNC |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Powerful programming function:
With mature CAD drawing programming software function, the motion trajectory of the rotary wheel can be straight line, arc, multi-arc connecting line and combined curve, etc., and can be input into the computer for pass standardization programming.
Easy operation:
The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
Safety protection function: It has the function of "copying" the core mold contour, that is, when adjusting the process and recording and returning the teaching, the rotary wheel will not collide with the core mold. At the same time, it is equipped with travel limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
Multifunctional processing: In the same machine tool, multiple processing functions such as trimming, flanging, curling, shrinking, rolling, etc. can be completed, which greatly improves the utilization rate of the equipment.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
