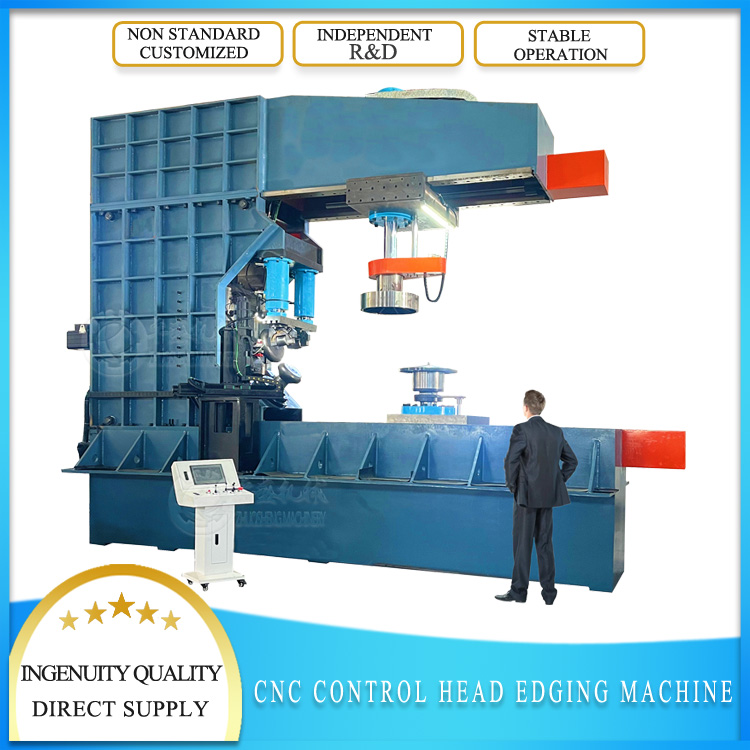

The dish-shaped head CNC spinning and Flanging Machine is an advanced equipment designed for dish-shaped head processing. It perfectly combines CNC technology with spinning and flanging technology to bring efficient, accurate and reliable solutions to the production of dish-shaped heads.
Dish-Shaped Head CNC Spinning Flanging Machine:
1. Full CNC control, only need to call up the program when spinning
2. Servo motor controls the motion accuracy of each axis, the product processing diameter is high precision and good consistency
3. Equipped with diameter measuring device, measuring the workpiece diameter is simple and intuitive.
4. Equipped with turning device, can be used for edge turning and chamfering workpieces
5. Equipped with mold installation rack, convenient for mold disassembly and assembly
6. Equipped with workpiece loading bracket
1. Advanced CNC system
- High-end CNC technology is used to achieve precise motion control and parameter adjustment. You can easily set various spinning and flanging process parameters through programming to meet the processing requirements of disc heads of different specifications.
- Friendly human-machine interface, simple and convenient operation, even operators without rich experience can quickly get started.
- Powerful programming function, can adapt to the processing of complex-shaped heads and improve the versatility of the equipment.
2. Efficient spinning and flanging mechanism
- Equipped with high-power motors and high-precision transmission systems to ensure strong power and stable operation during the spinning and flanging process. It can efficiently process metal sheets of various thicknesses and produce disc heads with uniform wall thickness and regular shape.
- Unique spinning and flanging mold design can be customized according to the size and shape of the head to ensure processing accuracy and surface quality.
- High-quality materials and advanced manufacturing processes are selected to improve the durability and reliability of the spinning and flanging mechanism.
3. High degree of automation
- The whole process of automatic loading, spinning and flanging processing and unloading is realized, which greatly improves production efficiency and reduces the labor intensity and error of manual operation.
- Equipped with automatic detection system, real-time monitoring of various parameters in the processing process, such as pressure, temperature, size, etc., to ensure the stability of product quality.
- It has the function of self-diagnosis of faults, which can timely discover and solve equipment failures and improve the reliability of equipment.
4. High-precision processing
- Use high-precision sensors and control systems to ensure the dimensional accuracy and shape accuracy of the dished head. The processing accuracy can reach ±0.05mm, which meets the needs of the high-end market.
- Equipped with a precise positioning system to ensure the consistency of the processing accuracy of each part of the head and improve the overall quality of the product.
5. Energy saving and environmental protection
- Adopt high-efficiency and energy-saving motors and transmission systems to reduce energy consumption. Less waste is generated during the spinning and flanging process, which meets environmental protection requirements.
- Optimize the processing technology, reduce noise and vibration during the processing, and improve the working environment.
6. Versatility
- In addition to processing dished heads, it can also be used for processing other metal parts of similar shapes to improve the utilization rate of equipment.
- Customized processing of special shapes and sizes can be carried out according to customer needs to meet the special needs of different industries.
| Maximum plate diameter: | Ø4500mm |
| Minimum plate diameter: | Ø1000mm |
| Maximum spinning height: | 1000mm (designed according to actual needs) |
| Maximum radius of forming wheel: | R300mm (designed according to actual needs) |
| Minimum spinning edge radius: | Ø50mm (designed according to actual needs) |
| Maximum spinning thickness: | 3-14mm (stainless steel) Carbon steel: 3-20mm |
| Workpiece shape: | round |
| Machine power: | 98kW |
| Machine dimensions: | 8*3.5*4.5 meters |
| Equipment weight: | 36t |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Application:
The dished head CNC spinning and flanging machine is widely used in the manufacture of pressure vessels in the chemical, petroleum, pharmaceutical, food and other industries. It is suitable for processing metal sheets of various materials, such as stainless steel, carbon steel, aluminum alloy, etc. Whether it is the head of a small container or the head of a large storage tank, high-quality processing can be achieved through this equipment.
Advantages Summary:
1. High-precision processing to ensure the quality of the head.
2. Efficient and automated production to shorten the production cycle.
3. Flexible customization to meet diverse needs.
4. Energy saving and environmental protection, in line with the concept of sustainable development.
5. Versatility to improve equipment utilization.
In short, the dished head CNC spinning and flanging machine provides strong support for the production of dished heads with its advanced technology and excellent performance.
The dish-shaped head CNC spinning and flanging machine applies pressure to the metal sheet through a rotating mold, so that the sheet gradually deforms into the shape of a dish-shaped head. First, place the metal sheet on the workbench, and the CNC system accurately controls the movement and rotation of the workbench to make the sheet contact the mold. As the mold rotates at high speed, the sheet undergoes plastic deformation under the action of friction and pressure. During the spinning process, the molding and flanging operations of the head are achieved by adjusting the shape and pressure of the mold. The CNC system can accurately control the speed, pressure, angle and other parameters of spinning to ensure the dimensional accuracy and shape accuracy of the head. Finally, when the head reaches the required shape and size, the CNC system controls the workbench to move the processed head out of the working area.
