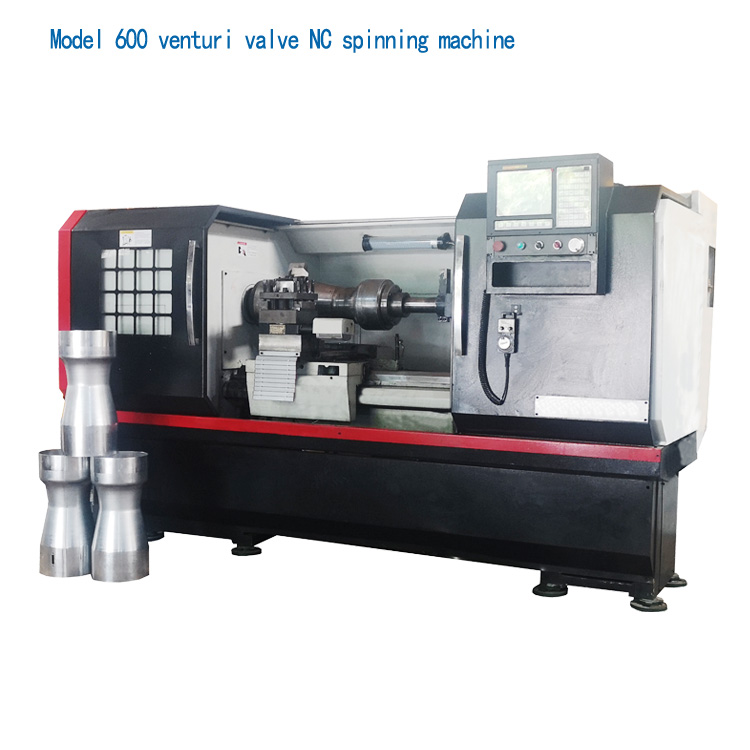

The Fully Automatic CNC Sheet metal spinning machine is a high-precision equipment tailored for Venturi valve production. Chinese Fully Automatic CNC Sheet Metal Spinning Machine combines advanced CNC technology and precise mechanical structure, and can efficiently and accurately complete the spinning processing tasks of key components of Venturi valves.
Fully Automatic CNC Sheet Metal Spinning Machine:
1. With mature CAD drawing programming software functions, the motion trajectory of the spinning wheel can be straight lines, arcs, multi-arc connecting lines and combined curves, etc. And input into the computer for standardized programming of passes.
2. The operator can input process parameters and spinning passes through the keyboard and operation panel, and can edit, store and call them at will.
3. It has the function of "copying" the core mold contour protection, that is, when adjusting the process and recording and returning the teaching, the spinning wheel will not collide with the core mold.
4. The machine tool can pause the feed speed and spindle speed in the automatic program. It is equipped with travel limit protection, software and hardware limit protection in the control system, fault detection and alarm functions.
5. Automatically detect faults of each unit when starting up, automatic diagnosis and overload protection, etc.

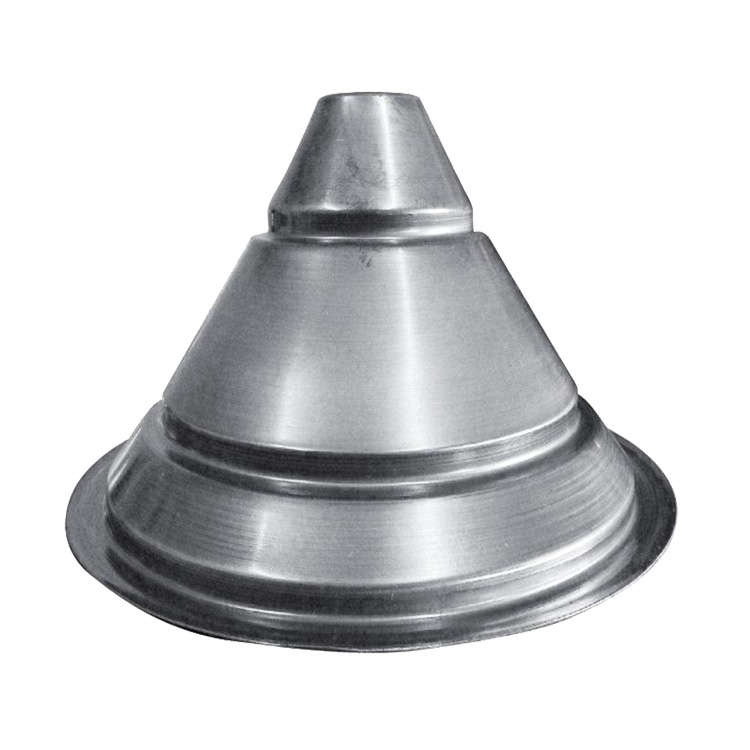

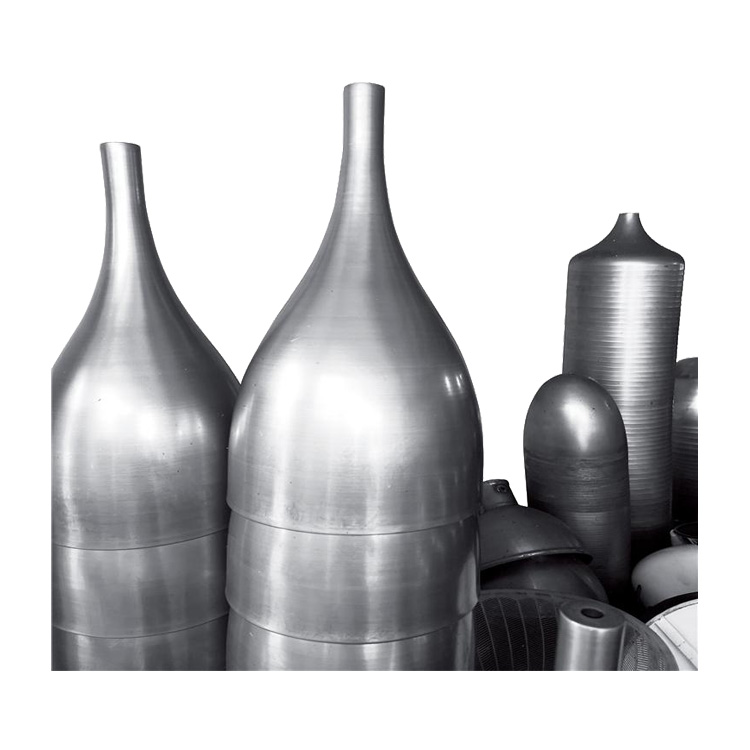

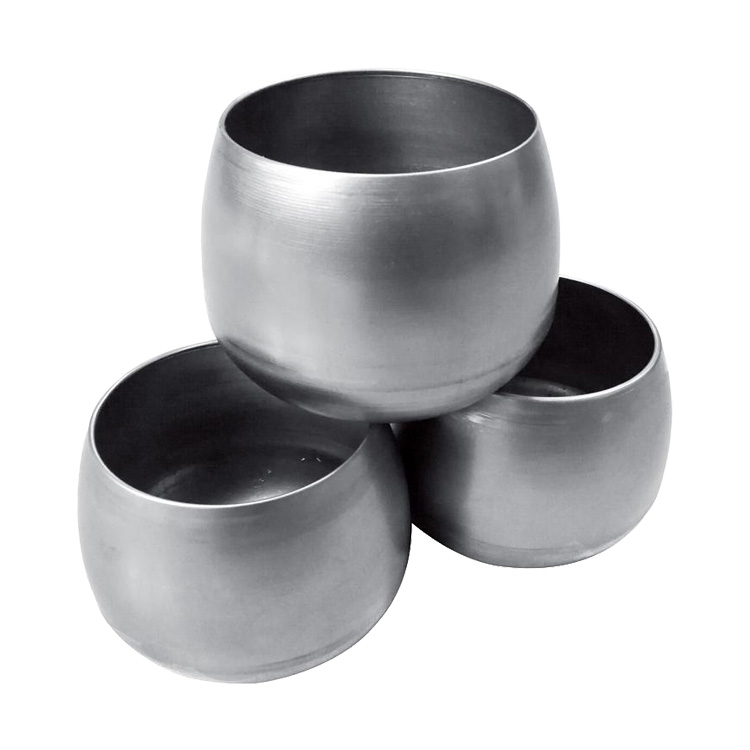

6. According to the user's requirements, various special shapes of parts can be spun to ensure that the workpiece surface, diameter, thinning rate and other related dimensions meet the requirements.
7. The same machine tool can complete trimming, flanging, curling, shrinking, rolling and other functions.
1. High-precision processing: The advanced CNC system is used to ensure that the processing accuracy reaches an extremely high level, meeting the strict requirements of Venturi valves for dimensional accuracy and surface quality.
2. Efficient production: With fast processing speed and stable performance, it can greatly improve the production efficiency of Venturi valves and reduce production costs.
3. Special design: Optimized design for the special shape and processing requirements of Venturi valves to ensure smooth and efficient processing.
4. Easy operation: Equipped with a user-friendly operating interface and an intelligent control system, operators can easily get started and quickly master the operation methods of the equipment.
5. High reliability: Select high-quality materials and components, and undergo strict quality inspection and testing to ensure the reliability and stability of the equipment and reduce equipment failures and maintenance time.
| Type: | Horizontal |
| Maximum workpiece length (mm): | 400 |
| Processing capacity: heavy | |
| Maximum workpiece weight (kg): | 40.8 |
| Spindle motor power (kW): | 5.5 |
| Number of spindles: | single axis |
| Number of axes: | 2 |
| Stroke (X axis) (mm): | 400 mm |
| Stroke (Z axis) (mm): | 210 mm |
| Positioning accuracy (mm): | ±0.01 |
| Repeat accuracy (X/Y/Z) (mm): | ±0.01 |
| Origin: | Guangdong, China |
| Turret stations: | 7 |
| Weight (KG): | 1500 |
| Warranty period: | 1 year |
| Mechanical test report: | provided |
| Video factory inspection: | provided |
| Core component warranty period: | 1 year |
| Screw width (mm): | 35 mm |
| Dimension(L*W*H)： | 2300x1200x1700mm |
| Brand Name： | zhuosheng |
| Model Number： | ZS-CC-400-B |
| Voltage： | AC220V 25W1 |
| CNC Control System： | KND |
| Key Selling Points： | Multifunctional |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.

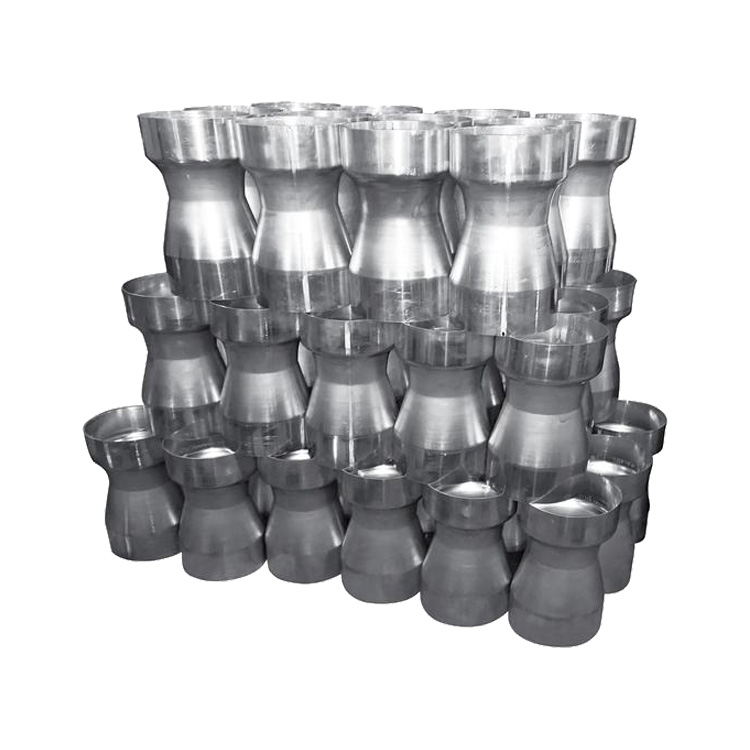

It is mainly used in the production and manufacturing of Venturi valves, and can process key components such as the valve body and valve core of Venturi valves. At the same time, it can also be used for the processing of other products with similar shapes and processing requirements.
