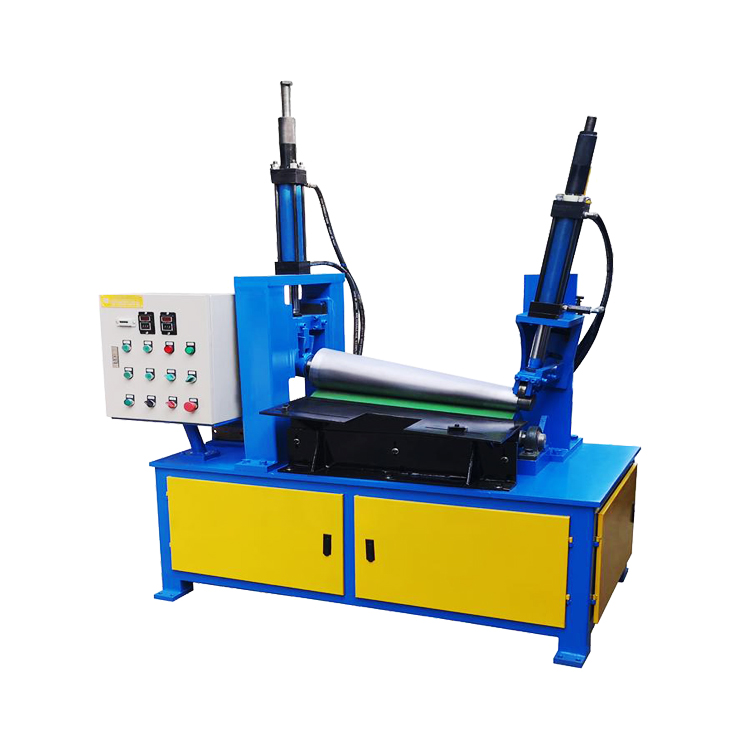

The Cone Shape CNC Hydraulic Roller Plate Rolling Machine mainly realizes conical plate rolling through the synergy of two rollers. Introduction to automatic hydraulic two-roller metal sheet conical plate rolling machine:
Cone Shape CNC Hydraulic Roller Plate Rolling Machine structure:
Fixed roller:
Usually fixed in position, its structure is strong and can withstand greater pressure. The roller surface is smooth and has a high hardness, which can effectively prevent scratches on the surface of the plate, and can provide stable support and friction for the plate to drive the plate to rotate.
Adjustable roller:
The position and angle can be adjusted by mechanical devices (such as screw mechanisms) or hydraulic devices. This adjustment function is the key to achieving conical plate rolling. By changing its distance and angle with the fixed roller, the rolled shape of the plate is controlled.
Drive system:
Includes motor and transmission device. The motor provides power for the rotation of the roller, and the transmission device (such as gears, chains or belts) transmits the power of the motor to the roller, ensuring that the roller can rotate stably and at a uniform speed, so that the plate can be rolled smoothly.
Frame:
It is the supporting part of the entire equipment, generally welded with high-strength steel. It needs to have sufficient strength and rigidity to withstand the huge force during the rolling process, while also ensuring the stability of the equipment to avoid shaking or deformation during operation.
Control system:
Some advanced two-roller conical plate rolling machines are equipped with CNC control systems. The operator can input relevant parameters through the control system, such as the angle of the cone, the starting position and end position of the plate rolling, etc. The system will automatically control the position of the adjustable roller and the rotation of the roller to achieve precise rolling.
High precision:
It can accurately roll the required conical shape. In some occasions where high shape accuracy is required, such as the manufacturing of parts for chemical equipment, wind power equipment, etc., it can meet production requirements well.
Wide application range:
It can roll metal sheets of various materials, such as carbon steel, stainless steel, aluminum alloy, etc. And for sheets of different thicknesses, as long as they are within the rated range of the equipment, they can be rolled into a cone.
Flexible operation:
By adjusting the position and angle of the adjustable roller, the shape and size of the cone can be easily changed to meet different production needs.
| Maximum working length (mm): | 1000 mm |
| Maximum plate thickness (mm): | 2.5 mm |
| Number of rollers: | 2 |
| Rolling speed (m/min): | 1-10 |
| Processing materials/metals: | aluminum, carbon steel, alloy, stainless steel |
| Video factory inspection: | provided |
| Mechanical test report: | provided |
| Sales type: | general products |
| Core component warranty: | 1 year |
| Core components: | PLC, motor |
| Condition: | brand new |
| Origin: | Guangdong, China |
| Weight (KG): | 1500 KG |
| Motor power (kw): | 4.4 kw |
| Main selling point: | fast cone rolling speed and good roundness |
| Warranty: | 1 year |
| Applicable industries: | manufacturing plants, machinery repair shops, others |
| Showroom location: | none |
| Control mode: | PLC touch screen |
| Drive mode: | hydraulic/electric |
| Automation: | automation |
| Additional services: | machining |
| Machine type: | roller bending machine |
| Certification: | ce |
| Post-warranty service: | online support |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.

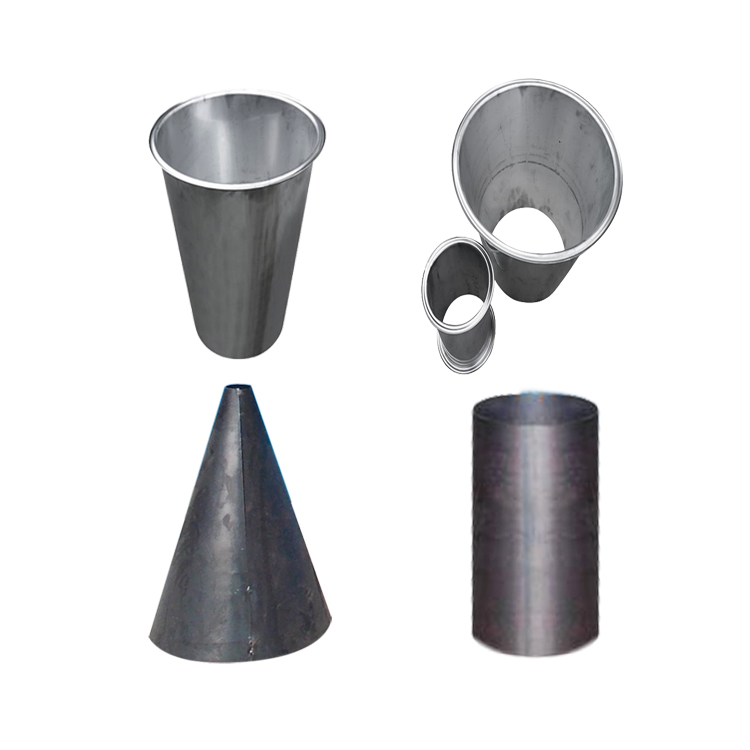

Chemical equipment manufacturing:
It is used to make the cylinder part of chemical reactors, conical funnels and other equipment. These equipment usually require precise conical structures to meet the requirements of the process flow.
Architectural decoration:
In architectural exterior design and interior decoration, it can be used to make some conical metal structures with artistic effects, such as conical columns, decorative metal cones, etc.
Energy equipment manufacturing:
For example, in wind power generation equipment, it is used to manufacture parts such as the conical transition section of the wind power tower, which helps to improve the overall performance of energy equipment.
The two-roller metal sheet conical plate rolling machine mainly realizes conical plate rolling through the synergy of two rollers. One of the rollers is a fixed roller and the other is an adjustable roller. When working, the metal sheet is placed between the two rollers. By adjusting the relative position and angle between the adjustable roller and the fixed roller, the metal sheet is driven by the rotation of the roller, and the rolling radius at one end is larger than that at the other end, thus gradually forming a cone.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
