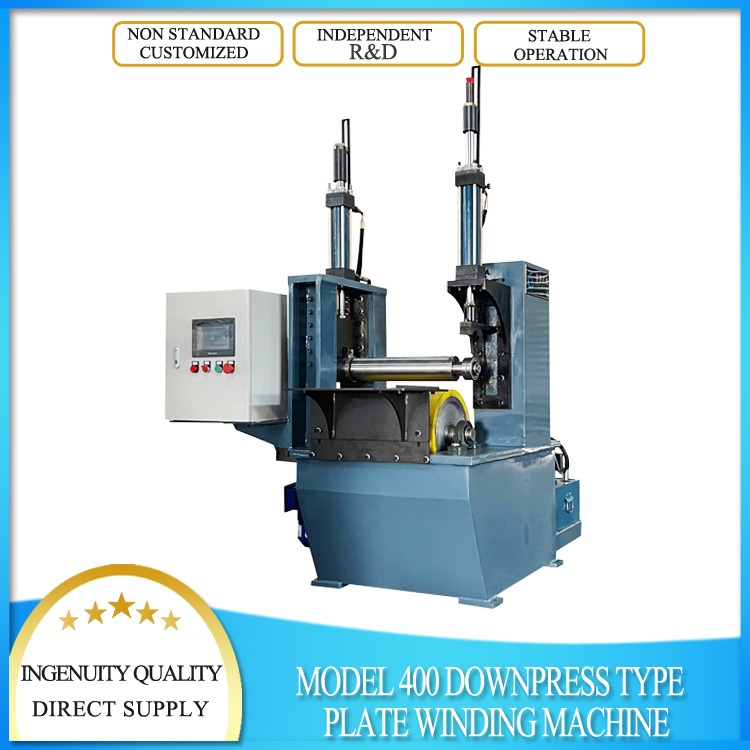

The small two-roller down-pressing metal sheet rolling machine is a device used to process metal sheets into a cylindrical shape.
Small Two-Roller Down-Pressing Metal Sheet Rolling Machine Structural Composition:
Frame:
Provides a stable support for the entire equipment to ensure the stability of the equipment during operation. It is usually welded with a sturdy metal structure such as channel steel or I-beam.
Roller:
It is the core component. The two rollers are generally made of high-strength steel, and the surface is finely processed with high hardness and finish to ensure that the metal sheet can be effectively guided to bend during the rolling process without scratching the surface of the sheet.
Down-pressing device:
Used to control the up and down movement of the movable roller. Common down-pressing devices include hydraulic systems or mechanical screw systems. The hydraulic system generates pressure through the hydraulic cylinder to achieve precise downward pressure control; the mechanical screw system relies on manual or motor-driven screw rotation to drive the movable roller up and down.
Drive motor:
Provides power for the rotation of the roller. The motor drives the roller to rotate, so that the metal sheet is continuously rolled in between the rollers, thereby completing the rolling process. The power of the motor is selected according to the size of the equipment and the material and thickness of the metal sheet to be processed.
Small and flexible:
The small design makes it small in footprint and easy to place in a small workshop or processing site. And it is simple to operate, does not require complicated installation and debugging processes, and can be put into use quickly.
High precision:
By reasonably adjusting the degree of downward pressure and the rotation speed of the roller, the accuracy of the rolling can be controlled to a certain extent, which can better meet some processing requirements that do not require particularly high cylinder accuracy.
Wide range of applications:
It can be used for rolling processing of a variety of metal plates, such as carbon steel, stainless steel, aluminum plates, etc. And for plates of different thicknesses, as long as they are within the processing capacity of the equipment, they can be rolled. However, it has certain restrictions on the thickness of the sheet, and is generally suitable for thinner metal sheets.
| Maximum working length (mm): | 400 mm |
| Maximum plate thickness (mm): | 3 mm |
| Number of rollers: | 2 |
| Roller speed (m/min): | 0.2 - 0.5 |
| Processing materials/metals: | aluminum, carbon steel, brass/copper, alloy, stainless steel |
| Shipment video inspection: | provided |
| Mechanical test report: | provided |
| Sales type: | general products |
| Core component warranty: | 1 year |
| Core components: | PLC, engine, bearing, gearbox, motor, gear, pump |
| Condition: | brand new |
| Origin: | Guangdong, China |
| Weight (KG): | 800 KG |
| Motor power (kw): | 3 kw |
| Main selling point: | competitive price |
| Warranty: | 1 year |
| Applicable industries: | building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, retail, construction projects, other |
| Showroom location: | no |
| Automation: | automatic |
| Additional services: | machining |
| Machine type: | roll forming machine |
| Packaging details: | standard export wooden box |
| Single package size: | 170X150X200 cm |
| Single gross weight: | 960.000 kg |
1. Non-standard customization: meet personalized technical requirements.
2. Samples and drawings: professional R&D team design.
3. Flexible payment: T/T, LC, international bank.
4. Video factory inspection: can be scheduled.
5.Experienced professional sales service team.
6. Visual production process.
1. Provide circuit diagrams, maintenance manuals,full-course teaching videos and other materials required.
2. Full-time after-sales service, cooperate with customers to inspect, install and test.
3. Quick response: respond within 24 hours if there are any problems with the customers use.
Ventilation duct processing:
used to make circular ventilation ducts, after the metal sheet is rolled into a cylinder, it is welded or otherwise connected to form a complete ventilation duct.
Small container production:
such as making some small metal cylindrical containers, such as trash cans, storage barrels, etc., for storing items.
Decoration industry:
In architectural decoration and interior decoration, metal sheets can be rolled into a circle and used to make decorative columns, arc-shaped decorative strips, etc., to increase the beauty of the space.
It is mainly operated by two rollers. One of the rollers is fixed in position, and the other roller can move up and down. When working, the metal sheet is placed between the two rollers, and the movable roller is pressed down, so that the metal sheet is gradually bent and deformed under the friction of the two rollers, and rolled into a cylindrical shape around the fixed roller.
We are grateful for your support and trust along the way. We are honored by your cooperation every time, and we will live up to your trust and provide you with a more excellent experience.
We can also help you with all your equipment packaging needs. Whether you need split packaging, certified materials or general packaging advice, our team of experts can help you. We understand that every business is different, so we tailor our services to your needs. Our goal is to make your life easier by meeting all your packaging needs so that you can focus on running your business.
As a professional mechanical equipment manufacturer, our company is a private technology innovation enterprise integrating independent research and development, design and manufacturing, installation and commissioning, and training.
Our R&D team has 10 people, whose members cover multiple professional fields such as mechanical engineering, electronic information, and materials science, and have the ability to deal with different technical problems.
Our equipment is widely used in aerospace, energy, ventilation,hardware and furniture, tableware, medicine, electricity, packaging,construction,automobile and other industries and fields.
Q: When shipping, what kind of packing?
A: We use standard export packing.
Q: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
Q: What's your delivery time?
A: Generally speaking, it takes 30 to 60 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Can you make it as required?
A: Yes, we can produce according to your samples or technical drawings. We can make molds and fixtures.
Q: Do you have professional engineers?
A: Yes.we have professional engineers and designers.
Q: Can you provide customzied machines?
A:Yes, we can design and manufacture according to your specific requirements.
